Descriere

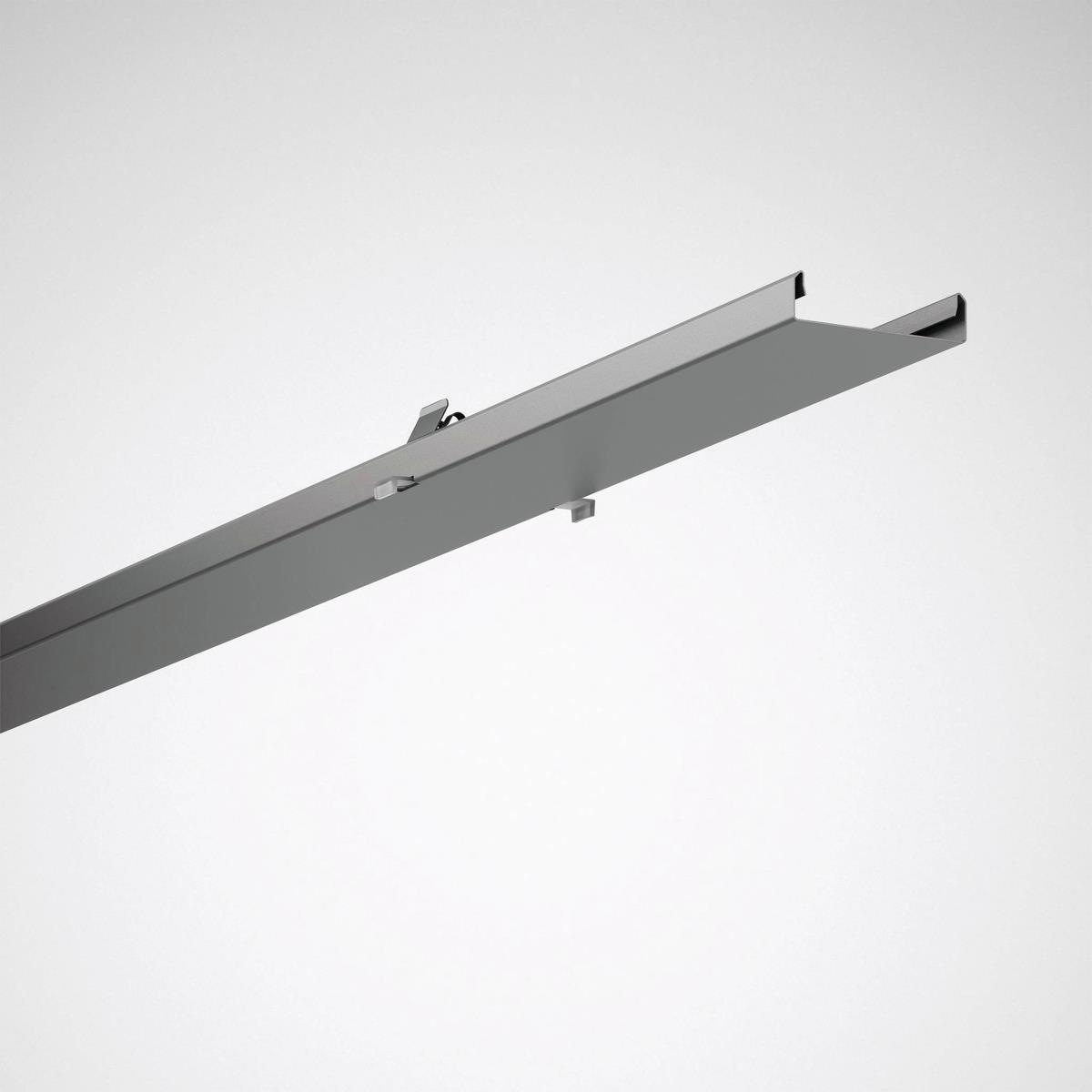

Blank cover for E-Line Fix LED continuous line system. Suitable for trunking E-Line Fix 07650... IP50 . The blank cover is equipped with a 5-pole connection terminal. During mounting this is connected to the wiring system of the trunking via a 5-pole female connector. Mounting to trunking with tool-free stainless steel snap fasteners. Correct mounting of the gear tray with the trunking is confirmed by a snap-in noise. The transparent mounting elements made of UV-stabilised PC can be removed after successful installation, thus ensuring theft and disassembly protection. Made of sheet steel. Colour silver gray (similar to RAL 9006). Length 1106 mm. With sealing ridge.
Documente
Specificatii
| Colour | |
| Colour | Silver |
| Transparent | - |
| Measurements | |
| Width | 62 |
| Height | 48 |
| Diameter | - |
| Length | 1106 |
| Model/type | |
| Type of accessory/spare part | Blind cap |
| Accessory | Yes |
| Spare part | - |
| Material | |
| Material | - |
| Package 1 | |
| volume | 0,0097 |
| weight | 0,975 |
| length | 1,183 |
| width | 0,1 |
| qmax | 1 |
| qmin | 1 |
| um | CT |
| gtin | 4018242593088 |
| Package 2 | |
| volume | 1,3152 |
| weight | 81,9 |
| length | 1,37 |
| width | 0,8 |
| qmax | 84 |
| qmin | 84 |
| um | PF |
| gtin | 4018242857760 |
