Descriere

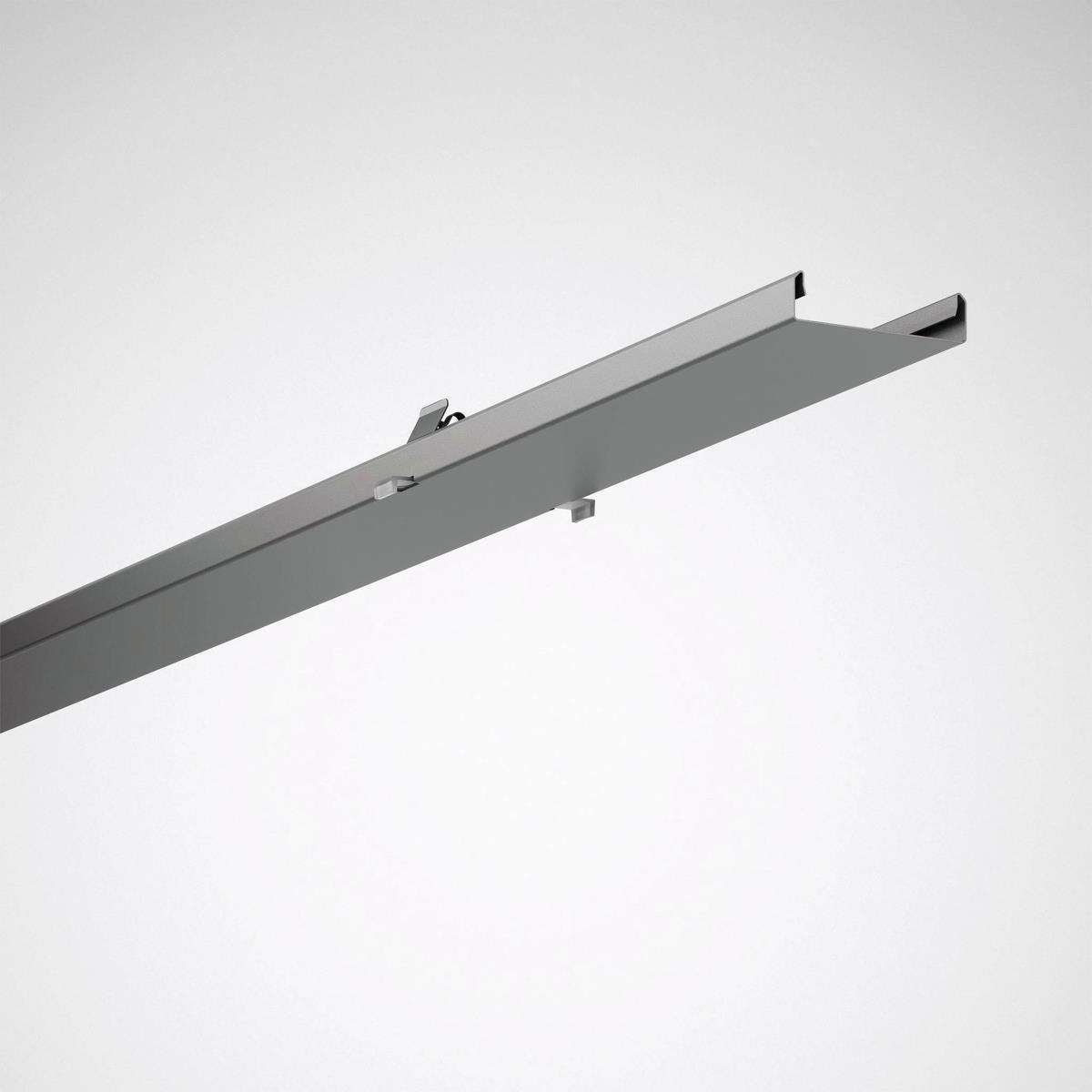

Blank cover for E-Line 7651 continuous line system. Suitable for trunking E-Line 07650... IP50 . Suitable for use in continuous line applications with protection rating IP20 and IP64. Mounting to trunking with tool-free stainless steel snap fasteners. Correct mounting of the gear tray with the trunking is confirmed by a snap-in noise. The transparent mounting elements made of UV-stabilised PC can be removed after successful installation, thus ensuring theft and disassembly protection. Made of sheet steel. Colour silver gray (similar to RAL 9006). Length 1474 mm. With sealing ridge.
Documente
Fisa tehnica
Alte surse
Specificatii
| Colour | |
| Colour | Silver |
| Transparent | - |
| Measurements | |
| Width | 62 |
| Height | 30 |
| Diameter | - |
| Length | 1474 |
| Model/type | |
| Type of accessory/spare part | Blind cap |
| Accessory | Yes |
| Spare part | - |
| Material | |
| Material | - |
| Package 1 | |
| volume | 0,011996 |
| weight | 1,21 |
| length | 1,496 |
| width | 0,099 |
| qmax | 1 |
| qmin | 1 |
| um | CT |
| gtin | 4018242593323 |
| Package 2 | |
| volume | 1,584 |
| weight | 108,9 |
| length | 1,65 |
| width | 0,8 |
| qmax | 90 |
| qmin | 90 |
| um | PF |
| gtin | 4018242858132 |
| Dimensions of product | |
| Weight | 0,850 |
