Descriere

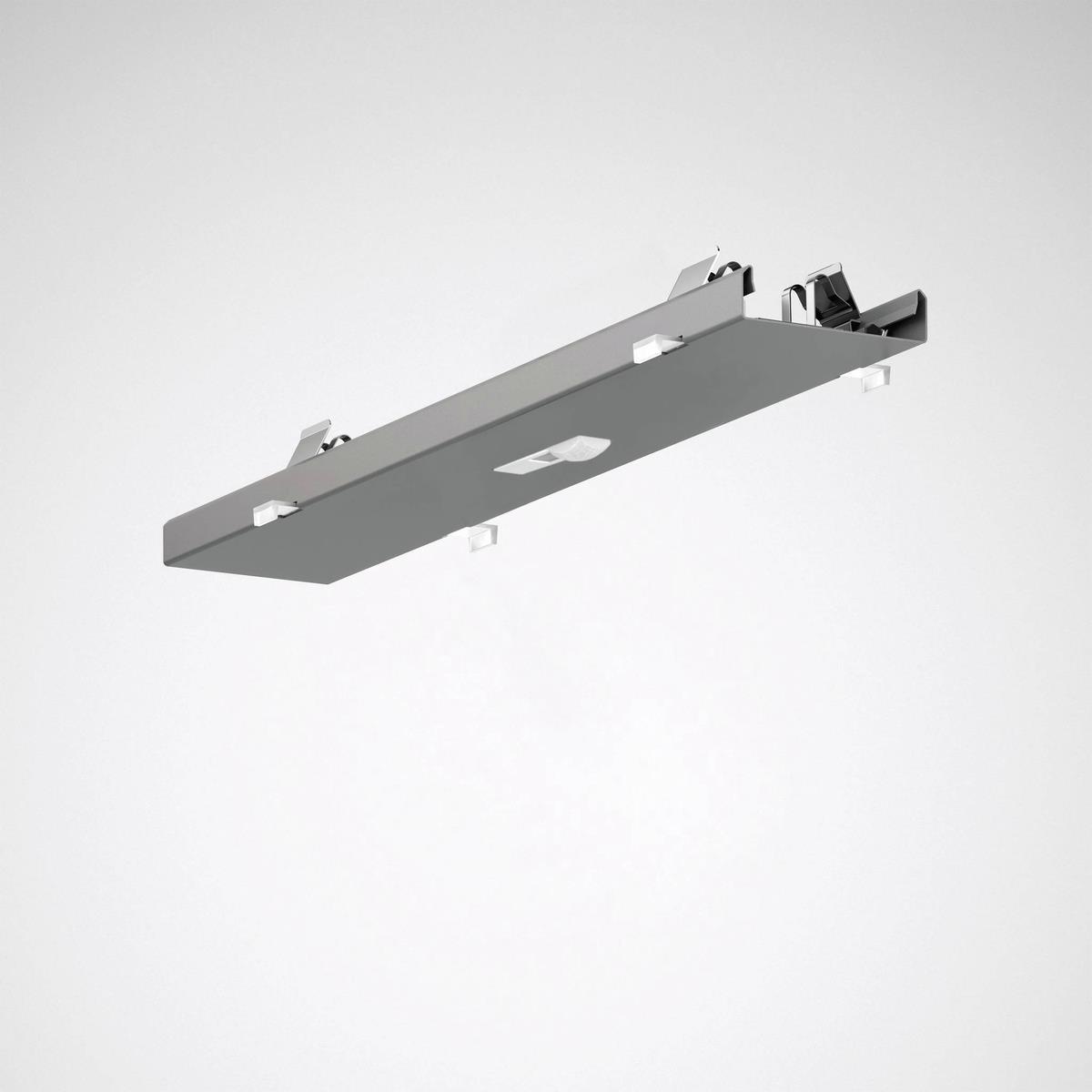

Gear tray of sheet steel. For combining with E-Line Fix 0765... trunking. With integrated LiveLink sensor for connecting to a LiveLink control unit, for daylight-dependent control and presence detection. LiveLink sensor MSensor G3 PIR 5DPI for daylight-dependent control and presence detection. Constant light control with switch-off function with sufficient daylight. Passive infrared presence sensor, with high-sensitivity multi-segment pyro-sensors, settable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatic adaptation of delay time to room use Special IQ mode for automatic adaptation of delay time to room use. Connection and electrical supply via the DALI interface of the LiveLink control unit. Number of occupied DALI devices: 5. Detection range: Ø 4,5 m, Mounting height 2,5 m - 5 m. Colour silver gray (similar to RAL 9006). Dimensions (L x W x H): 368 mm x 81 mm x 44,8 mm. Complies with DIN 10500 and is suitable for applications in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies in the food and beverage industry. Further information about LiveLink can be found at www.trilux.com.
Documente
Specificatii
| Colour | |
| Colour | Silver |
| Model/type | |
| Type of accessory/spare part | - |
| Number of cores | - |
| Accessory | Yes |
| Spare part | - |
| Connection | |
| Nominal cross section | - |
| Package 1 | |
| volume | 0,0032 |
| weight | 0,6 |
| length | 0,396 |
| width | 0,099 |
| qmax | 1 |
| qmin | 1 |
| um | CT |
| gtin | 4018242435005 |
| Package 2 | |
| volume | 1,3152 |
| weight | 115,2 |
| length | 1,37 |
| width | 0,8 |
| qmax | 192 |
| qmin | 192 |
| um | PF |
| gtin | 4018242752195 |
