Descriere

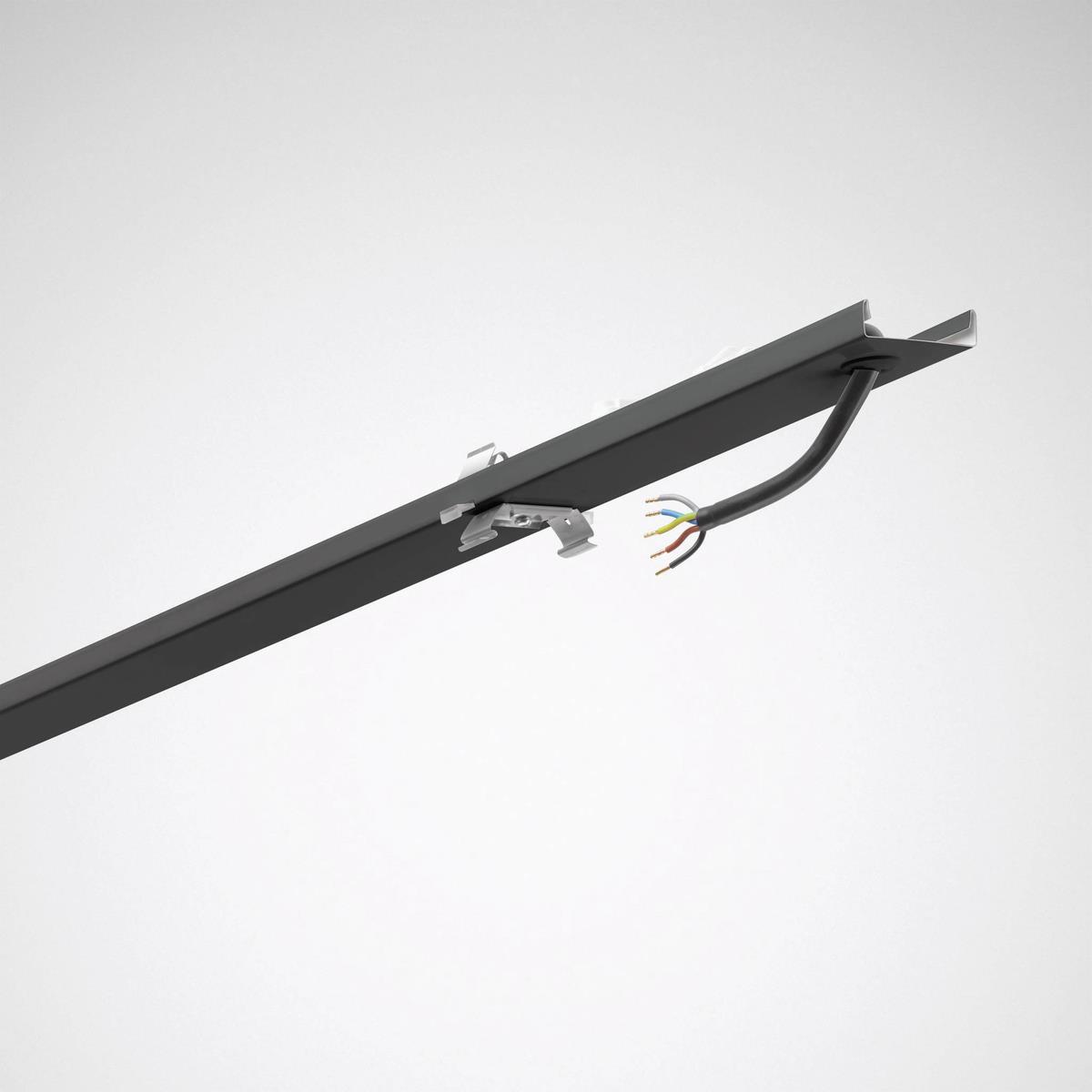

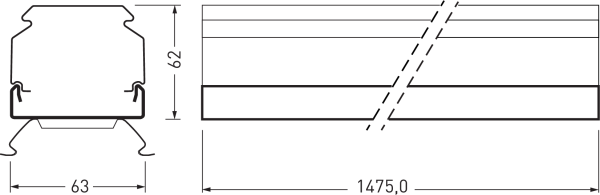

Gear tray for E-Line 7651 for integration of a weather-proof luminaire of type OleveonFit / AragonFit in a continuous line application (OleveonF 12... 1257 mm / AragonF 12...1257 mm). The clamps for tool-free quick mounting of the luminaire are mounted on the gear tray. For combination with E-Line 07650... trunking for direct ceiling mounting and suitable for suspended mounting using accessories to be ordered separately. Mounting to trunking with tool-free stainless steel snap fasteners. Correct mounting of the gear tray with the trunking is confirmed by a snap-in noise. The transparent mounting elements made of UV-stabilised PC can be removed after successful installation, thus ensuring theft and disassembly protection. Self-actuating electrical connection via plug contacts with phase selection. Electrical connection of the luminaire is via the connecting cable routed outwards. Combination with accessories 07650... (trunking, IP end cap) suitable for use in locations exposed to fire hazards in accordance with DIN EN 60598-2-24 (D designation). 3-pole-version for switchable luminaires. Colour black (similar to RAL 9005). Dimensions (L x W x H): 1474 mm x 79 mm x 60 mm. Complies with DIN 10500 and is suitable for applications in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies in the food and beverage industry.
Documente
Specificatii
| Colour | |
| Colour | Black |
| Transparent | - |
| Measurements | |
| Width | 79 |
| Height | 60 |
| Diameter | - |
| Length | 1474 |
| Model/type | |
| Type of accessory/spare part | - |
| Accessory | Yes |
| Spare part | - |
| Material | |
| Material | - |
| Package 1 | |
| volume | 0,011996 |
| weight | 1,45 |
| length | 1,496 |
| width | 0,099 |
| qmax | 1 |
| qmin | 1 |
| um | CT |
| gtin | 4018242442638 |
| Package 2 | |
| volume | 1,584 |
| weight | 145 |
| length | 1,65 |
| width | 0,8 |
| qmax | 100 |
| qmin | 100 |
| um | PF |
| gtin | 4018242752560 |
| Dimensions of product | |
| Weight | 1,100 |
