7651 LW 200-840ETDD L225 01

Descriere

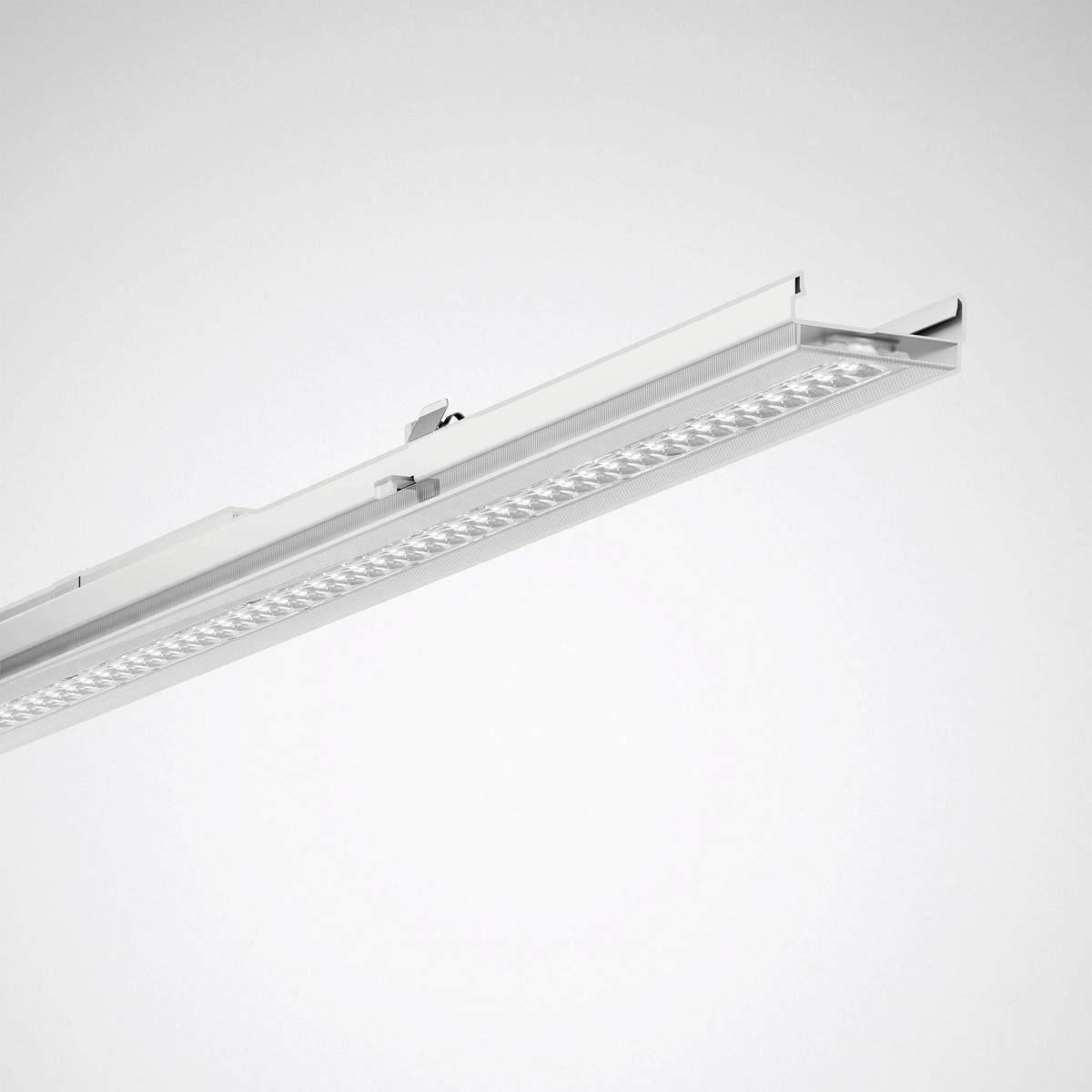

LED gear tray for continuous line system E-Line 7651 Fix. Version for use in applications with high technical requirements for the continuous line with simultaneous economic efficiency. Compliant to DIN 10500. The luminaires are suitable for applications in HACCP, IFS and/or BRC Global Standard Food -certified companies in the food and beverage industries. For combining with E-Line Fix 0765... trunking. Mounting to trunking with tool-free stainless steel snap fasteners. Correct mounting of the gear tray with the trunking is confirmed by a snap-in noise. The transparent mounting elements made of UV-stabilised PC can be removed after successful installation, thus ensuring theft and disassembly protection. Due to the design, the harmonious appearance of the lighting system is also guaranteed when various optical systems are combined within a continuous line system. Light distribution characteristic: wide, Beam spread C0: 89°, Beam spread C90: 88°, Main beam angle: +/- 20°. The optical system consists of a PMMA lens optic with three matched, photometrically effective sections and thus ensures uniform light distribution and homogeneous illumination. The flat surface makes cleaning the luminaire easier. Particularly suitable for wide-area illumination. The light distribution characteristic of the gear tray is determined by the lens concept and requires no further components. Recommended installation height: 4 - 8 m. With three LED modules (3 x 96 LED). Light generation is free of infrared (IR) and ultraviolet (UV) components. The luminaire luminous flux of the gear tray is electronically parameterised in the production process according to customer requirements. Parameterised luminaire luminous flux of the gear tray: 21.000 lm. connected load 144 Watt, luminous efficiency of luminaire 146 lm/W. General Colour rendering index (CRI) > 80, correlated colour temperature (CCT) 4000 K. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 30 °C) = 50.000 h. Gear tray of sheet steel, coated white. Length of the gear tray 2.211 mm. Permissible ambient temperature (ta) 30 °C. protection rating (DIN EN 60529):IP20 Safety class (EN 61140): I. impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Self-actuating electrical connection via plug contacts with phase selection. Phase selection is without use of tools. With mechanical misassembly protection. With electronic transformer, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). The luminaire can be equipped with the Monitoring Ready (MOR) functionality on request. The product complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. A special online tool is available for the simple and fast planning and configuration process of the application. The resource-optimised packaging concept of the continuous-row components simplifies installation and protects the environment. The luminaire is also ENEC-certified by an independent testing authority. With Trilux after-sales promise: the luminaire is available for 10 years and spare parts (LED module, control gear unit and optical system) are available for 15 years from date of invoice. The right to make reasonable modifications in the interests of progress is reserved.
