Descriere

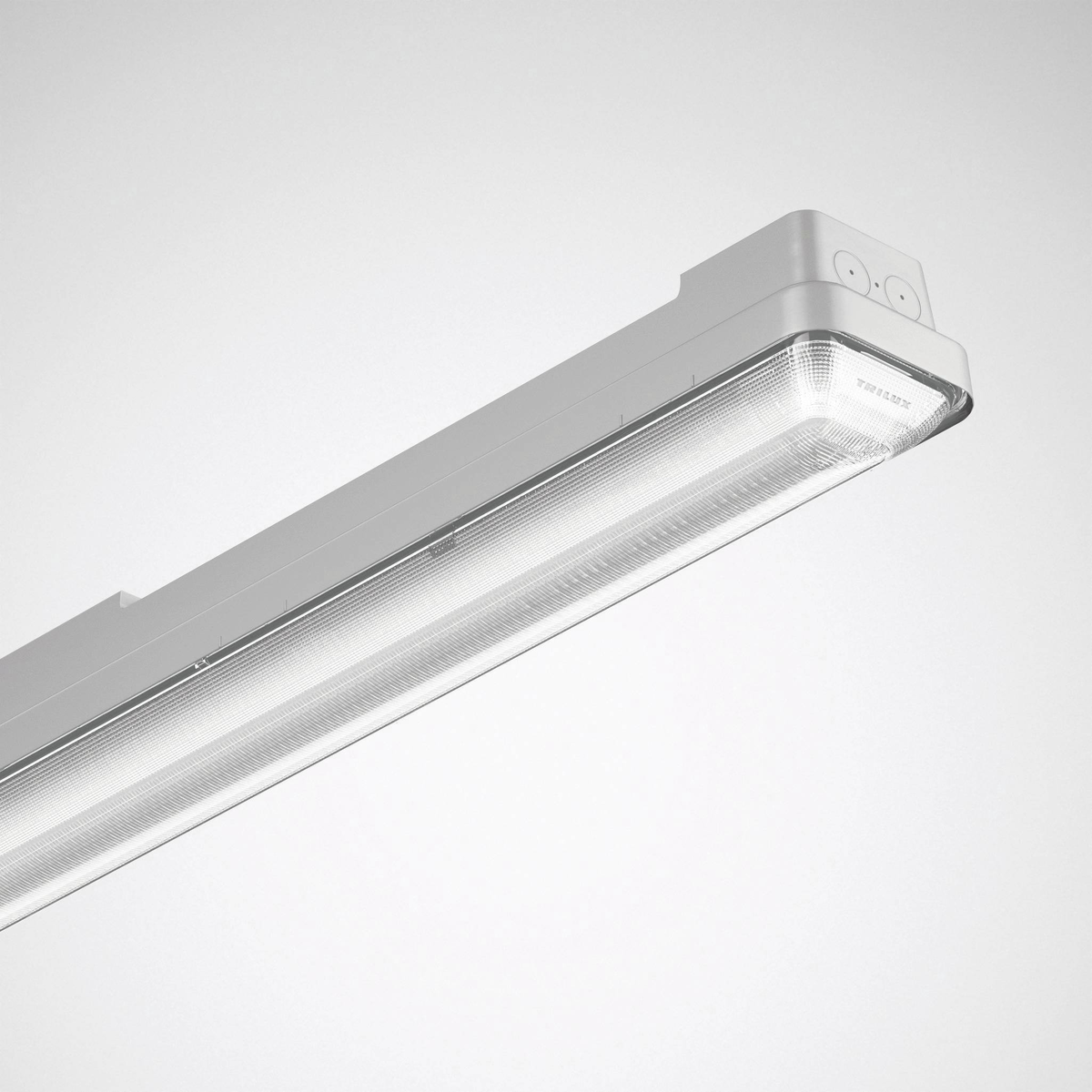

LED weather-proof luminaire with IP66 protection for use in applications with high demands on variability, efficiency, quality of light and technology. The luminaire is part of an assortment with constructionally identical, mounting-compatible variants. These versions are available with alternative optical systems, light engines with settable luminous flux levels and with a connection option to light management systems and emergency lighting systems. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. With limited surface temperature, suitable for use in fire hazardous areas according to DIN EN 60598-2-24. With clipless catch technology for protection rating-compliant and simple assembly of diffuser cover and luminaire body after electrical connection. Suspended mounting possible via optional accessories. Ceiling mounting with stainless steel fixing clips (included). Suspended mounting possible via optional accessories. With a prismatic, photometrically effective, translucent PC diffuser, direct distribution. With symmetric wide light intensity distribution. Luminaire luminous flux and light color fixed. Luminaire luminous flux 6400 lm, connected load 39 W, maximum luminous efficiency of luminaire 164 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body of PC. Colour of luminaire body light grey (similar to RAL 7035). Dimensions (L x W): 1552 mm x 102 mm, luminaire height 91 mm. Permissible ambient temperature (ta): -30 °C - +50 °C. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP66, impact resistance level in accordance with IEC 62262: IK08, testing temperature of wire glow test in accordance with IEC 60695-2-11: 850 °C. Weight: 2,6 kg. With 3-pole terminal to 2.5 mm2. With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
Documente
Specificatii
| Protection | |
| Protection class according to IEC 61140 | I |
| Degree of protection (IP) | IP66 |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| Degree of protection (NEMA) | - |

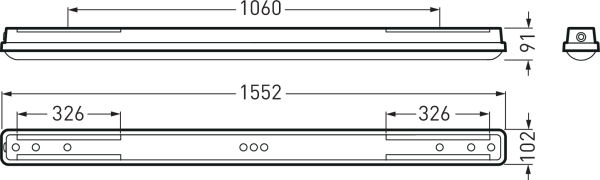

| Measurements | |
| Width | 102 |
| Outer diameter | - |
| Built-in width | - |
| Built-in diameter | - |
| Length | 1552 |
| Height/depth | 91 |
| Built-in length | - |
| Built-in height/depth | - |
| Model/type | |
| Lamp holder | Other |
| With movement sensor | No |
| Type of grid | None |
| With light sensor | No |
| Lamp type | LED exchangeable |
| With light source | Yes |
| With control gear | Yes |
| With air slots | - |
| Type of wiring | - |
| Dimming potentiometer (integrated) | No |
| Connection | |
| Conductor cross section | - |
| Connection type | Push-in clamp |
| Exchangeable control gear | Yes |
| Colour | |
| Housing colour | Grey |
| Colour rendering index CRI | 80-89 |
| Colour temperature | 4000 |
| Colour of light | White |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Colour of light adjustable | No |
| Electrical | |
| Voltage type | AC |
| Suitable for lamp power | - |
| Number of poles | 3 |
| Nominal voltage | 220 |
| Emergency power supply integrated | No |
| Nominal current | - |
| Max. system power | 39 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) | 50 |
| Max. number of luminaires per miniature circuit breaker B16 (MCB) | 36 |
| Power factor | 0.95 |
| Setting/control | |
| Type of control gear | Electronic transformer |
| Dimming mains voltage modulation | No |
| Operation by Bluetooth | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | - |
| Mounting/installation | |
| Suitable for wall mounting | Yes |
| Suitable for suspended mounting | Yes |
| Suitable for built-in mounting | No |
| Suitable for surface mounting | Yes |
| Suitable for ceiling mounting | Yes |
| Performance | |
| Luminous intensity | - |
| Material | |
| Housing material | Plastic |
| Material cover | Other |
| Surface protection housing | Untreated |
| Application | |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Suitable for workplace according to EN 12464-1 | No |
| Other | |
| Light outlet | Direct/indirect |
| Light distribution | Symmetric |
| Impact strength | IK08 |
| Suitable for number of light sources | 1 |
| Beam angle | - |
| Rated luminous flux according to IEC 62722-2-1 | 6400 |
| Rated lifetime L70/B50 at 25 °C | - |
| Total harmonic distortion | 14 |
| Light distributor | Focal lens |
| Luminaire efficacy | 164 |
| Unified Glare Ratio (UGR) | - |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | - |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | - |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) | - |
| Flickering value Pst LM | 0.3 |
| Stroboscope effect value SVM | 0.3 |
| Options | |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Constant light output (CLO) | No |
| IFTTT support available | - |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming phase cut-off (trailing edge) | No |
| Dimming phase cut-on (leading edge) | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming DSI | No |
| Dimming DALI-2 | No |
| Energy efficiency/environmental | |
| Photobiological safety according to EN 62471 | RG0 |
| Energy efficiency class of the light source according to EU regulation 2019/2015 | - |
| Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C) | - |
| Operating conditions | |
| Rated ambient temperature according to IEC 62722-2-1 | -30 |
| Approval/certification | |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible with Casambi | - |
| Package 1 | |
| volume | 0,0188 |
| weight | 2,94 |
| length | 1,569 |
| width | 0,11 |
| qmax | 1 |
| qmin | 1 |
| um | CT |
| gtin | 4018242517442 |
| Package 2 | |
| volume | 1,584 |
| weight | 249 |
| length | 1,65 |
| width | 0,8 |
| qmax | 70 |
| qmin | 70 |
| um | PF |
| gtin | 4018242809042 |
