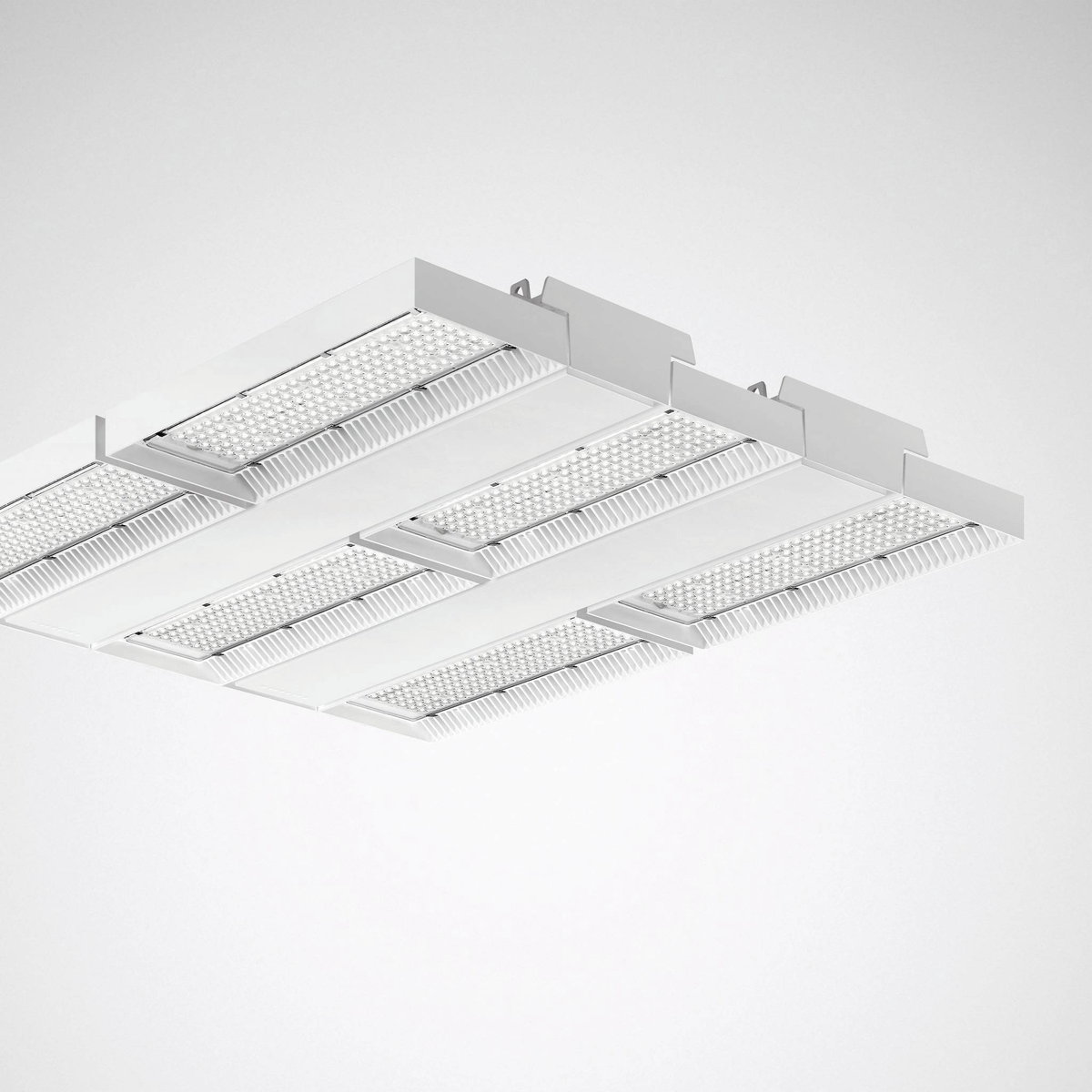

Robust LED highbay luminaire. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. With limited surface temperature, suitable for use in fire hazardous areas according to DIN EN 60598-2-24. Suitable for ceiling and suspended mounting with optional accessories. Optical system consists of a PC lens optic. With symmetric narrow light distribution. Luminaire luminous flux and light color fixed. LED system consists of 6 LED modules mounted to aluminium support. Luminaire luminous flux 53300 lm, connected load 298 W, maximum luminous efficiency of luminaire 179 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Robust diecast aluminium body with integrated cooling ribs. Surface coated white (similar to RAL 9016). Dimensions (L x W): 649 mm x 559 mm, luminaire height 63 mm. Permissible ambient temperature (ta): -30 °C - +45 °C. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP65, impact resistance level in accordance with IEC 62262: IK08, testing temperature of wire glow test in accordance with IEC 60695-2-11: 850 °C. Weight: 12,0 kg. With 5-pole connection cable 5 x 0.75 mm2 (1500 mm). With 2 electronic ballasts, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). Luminaire is switchable and dimmable by means of touch functionality via DALI control terminals (Touch DIM). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire is monitoring-ready (MOR), supplies luminaire data for monitoring or for predictive maintenance and is therefore compatible to the TRILUX Digital Services (Energy Monitoring and Light Monitoring). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare part consisting of control gear unit available for 15 years after the invoice date, subject to reasonable modifications in the interests of progress. Due to the design, the spare parts of LED module and optical system are not available.
Documente
Specificatii
| Mounting/installation | |
| Mounting method | Pendant |
| Protection | |
| Protection class according to IEC 61140 | I |
| Ball-proof | No |
| Degree of protection (IP) | IP65 |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| Degree of protection (NEMA) | - |

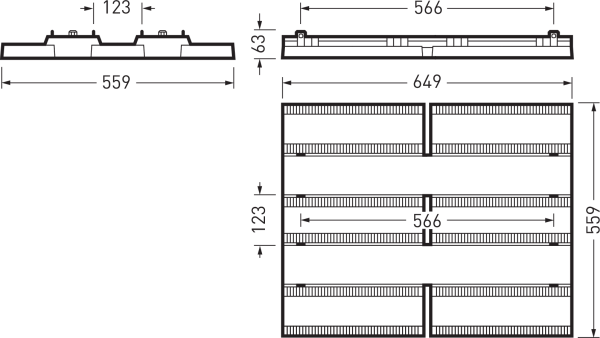

| Measurements | |
| Width | 559 |
| Outer diameter | - |
| Length | 649 |
| Height/depth | 63 |
| Model/type | |
| Reflector | None |
| Lamp holder | Other |
| Lamp type | LED not exchangeable |
| With protective cover | No |
| With light source | Yes |
| With control gear | Yes |
| Type of wiring | - |
| Dimming potentiometer (integrated) | No |
| Connection | |
| Conductor cross section | - |
| Connection type | Other |
| Exchangeable control gear | Yes |
| Colour | |
| Housing colour | White |
| Colour rendering index CRI | 80-89 |
| Reflector colour | - |
| Colour temperature | 4000 |
| Colour of light | White |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Colour of light adjustable | No |
| Electrical | |
| Voltage type | AC |
| Suitable for lamp power | - |
| Number of poles | 5 |
| Nominal voltage | 220 |
| Emergency power supply integrated | No |
| Nominal current | - |
| Max. system power | 298 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) | 13 |
| Max. number of luminaires per miniature circuit breaker B16 (MCB) | 8 |
| Power factor | 0.95 |
| Setting/control | |
| Type of control gear | Electronic transformer |
| Dimming mains voltage modulation | No |
| Operation by Bluetooth | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | - |
| Material | |
| Housing material | Aluminium |
| Material reflector | Other |
| Application | |
| Suitable for emergency lighting | No |
| Suitable for auxiliary lamp | No |
| Other | |
| Light distribution | Symmetric |
| Impact strength | IK08 |
| Suitable for number of light sources | 1 |
| Beam angle | - |
| Rated luminous flux according to IEC 62722-2-1 | 53300 |
| Rated lifetime L70/B50 at 25 °C | - |
| Total harmonic distortion | 14 |
| Light distributor | Focal lens |
| Luminaire efficacy | 179 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | - |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | - |
| Options | |
| Constant light output (CLO) | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming phase cut-off (trailing edge) | No |
| Dimming phase cut-on (leading edge) | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | Yes |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Energy efficiency/environmental | |
| Photobiological safety according to EN 62471 | RG1 |
| Energy efficiency class of the light source according to EU regulation 2019/2015 | - |
| Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C) | - |
| Operating conditions | |
| Rated ambient temperature according to IEC 62722-2-1 | -30 |
| Approval/certification | |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
| Package 1 | |
| volume | 0,0412 |
| weight | 13 |
| length | 0,67 |
| width | 0,585 |
| qmax | 1 |
| qmin | 1 |
| um | CT |
| gtin | 4018242362332 |
| Package 2 | |
| volume | 1,3152 |
| weight | 182 |
| length | 1,37 |
| width | 0,8 |
| qmax | 14 |
| qmin | 14 |
| um | PF |
| gtin | 4018242725045 |
