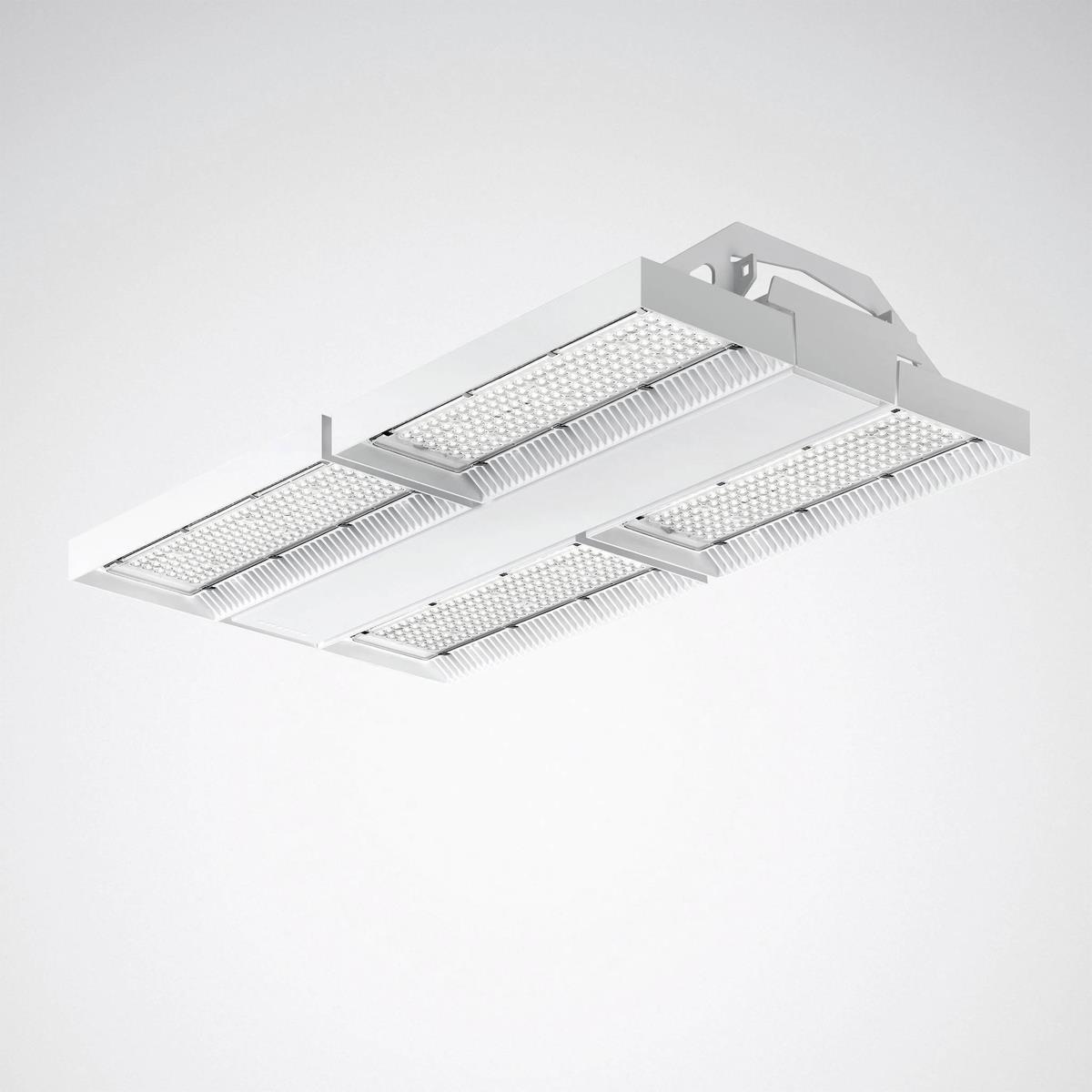

Mirona Fit-Spo 4L TB 260-940 ETDD

Robust LED highbay luminaire, ball-proof. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. Ball-proof according to DIN VDE 0710-13, suitable for use in sports facilities according to DIN 18032-3. With limited surface temperature, suitable for use in fire hazardous areas according to DIN EN 60598-2-24. Surface-mounted luminaire for ceiling mounting. Optical system consists of a PC lens optic. With symmetric narrow light distribution. Luminaire luminous flux and light color fixed. LED system consists of 4 LED modules mounted to aluminium support. Luminaire luminous flux 26100 lm, connected load 176 W, maximum luminous efficiency of luminaire 148 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, Television Lighting Consistency Index (TLCI) > 80. general colour rendering index (CRI) Ra > 90. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80 (tq 50 °C) = 100,000 h., Mean rated service life L90 (tq 50 °C) = 50,000 h. Flicker: Pst LM ≤ 1.0 at full load. Stroboscopic effect: SVM ≤ 0.4 at full load. Robust diecast aluminium body with integrated cooling ribs. Surface coated white (similar to RAL 9016). Dimensions (L x W): 649 mm x 342 mm, luminaire height 63 mm. Rear reinforcement of luminaire body for special use in sports locations. Ball-impact-resistance according to DIN 18032-3. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP65, impact resistance level in accordance with IEC 62262: IK08, testing temperature of wire glow test in accordance with IEC 60695-2-11: 850 °C. Permissible ambient temperature (ta): -30 °C to 50 °C. Weight: 8,1 kg. With 2 electronic ballasts, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). Luminaire is switchable and dimmable by means of touch functionality via DALI control terminals (Touch DIM). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire is monitoring-ready (MOR), supplies luminaire data for monitoring or for predictive maintenance and is therefore compatible to the TRILUX Monitoring Services. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. Luminaire available for 10 years, spare part consisting of control gear unit available for 15 years after the invoice date, subject to reasonable modifications in the interests of progress. Due to the design, the spare parts of LED module and optical system are not available.
