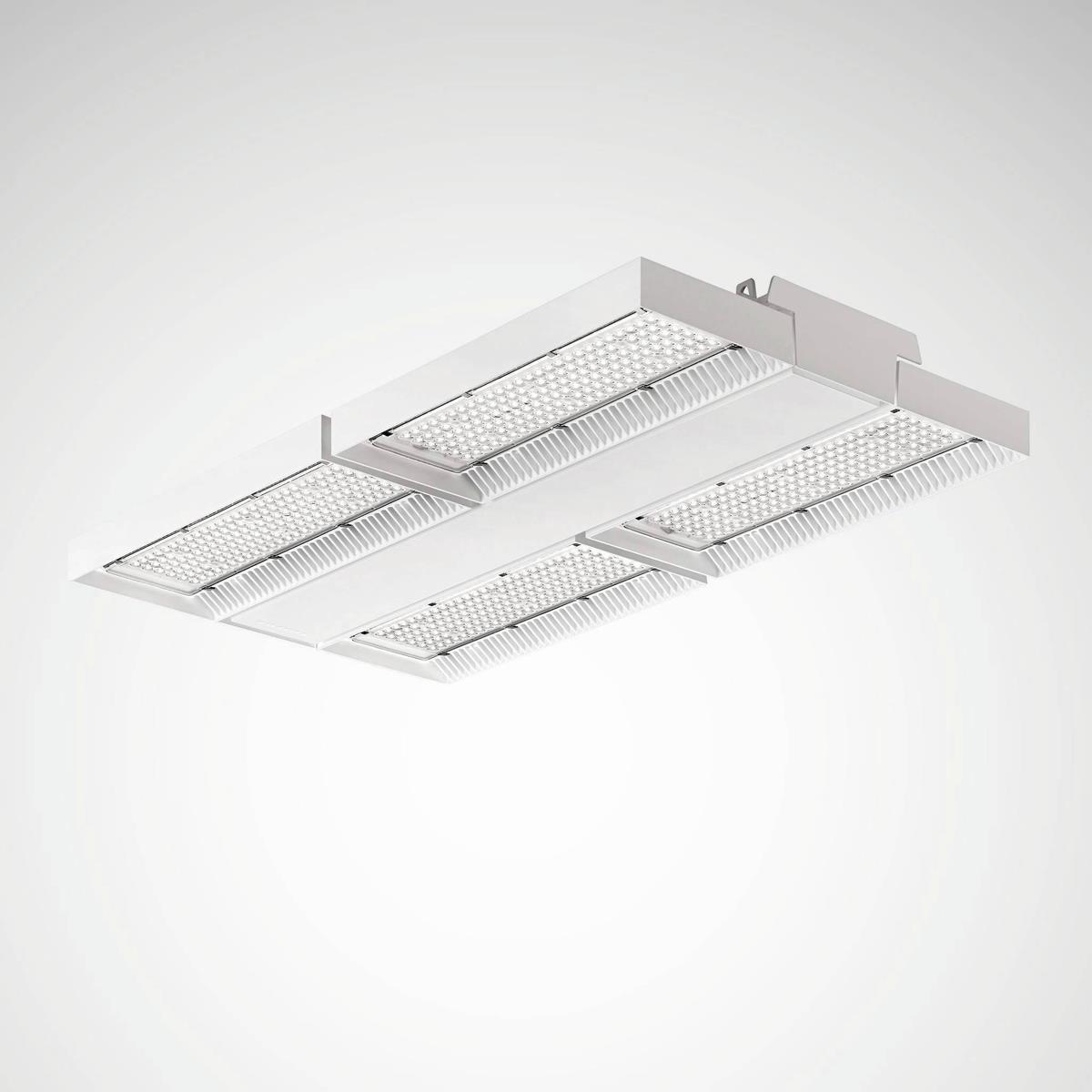

Robust high bay LED luminaires for ambient temperatures up to +70 °C. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. With limited surface temperature, suitable for use in fire hazardous areas according to DIN EN 60598-2-24. Suitable for ceiling and suspended mounting with optional accessories. Optical system consists of a PC lens optic. With symmetric narrow light distribution. Luminaire luminous flux and light color fixed. LED system consists of 4 LED modules mounted to aluminium support. Luminaire luminous flux 21400 lm, connected load 120 W, maximum luminous efficiency of luminaire 178 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80 (tq 70 °C) = 100,000 h., Mean rated service life L90 (tq 70 °C) = 50,000 h. Flicker: Pst LM ≤ 1.0 at full load. Stroboscopic effect: SVM ≤ 0.4 at full load. Robust diecast aluminium body with integrated cooling ribs. Surface coated white (similar to RAL 9016). Dimensions (L x W): 649 mm x 342 mm, luminaire height 63 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP65, impact resistance level in accordance with IEC 62262: IK08, testing temperature of wire glow test in accordance with IEC 60695-2-11: 850 °C. Permissible ambient temperature (ta): -30 °C to 70 °C. Weight: 7,2 kg. With 5-pole connection cable 5 x 0.75 mm2 (1500 mm). With electronic transformer, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). Luminaire is switchable and dimmable by means of touch functionality via DALI control terminals (Touch DIM). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare part consisting of control gear unit available for 15 years after the invoice date, subject to reasonable modifications in the interests of progress. Due to the design, the spare parts of LED module and optical system are not available.
Documente
Specificatii
| Protection | |
| Protection class according to IEC 61140 | I |
| Degree of protection (IP) | IP65 |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| Degree of protection (NEMA) | - |
| Ball-proof according to DIN 18032-3 | - |

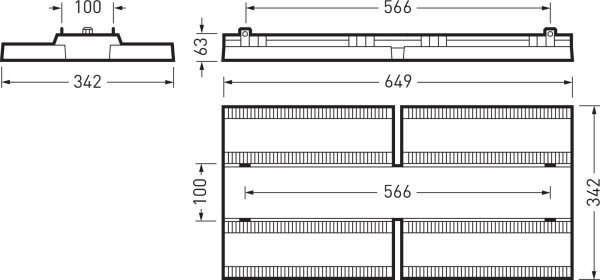

| Measurements | |
| Width | 342 |
| Outer diameter | - |
| Length | 649 |
| Height/depth | 63 |
| Model/type | |
| Reflector | None |
| Lamp holder | Other |
| With movement sensor | - |
| With light sensor | - |
| Lamp type | LED not exchangeable |
| With presence detector | No |
| With protective cover | No |
| With light source | Yes |
| With control gear | Yes |
| Type of wiring | - |
| Dimming potentiometer (integrated) | No |
| Connection | |
| Conductor cross section | - |
| Connection type | Other |
| Connectable conductor cross section | - |
| Exchangeable control gear | Yes |
| Colour | |
| Housing colour | White |
| Colour rendering index CRI | 40-59 |
| Reflector colour | Other |
| Colour temperature | 4000 |
| Colour of light | White |
| Colour consistency (McAdam ellipse) | - |
| Colour of light adjustable | No |
| Options | |
| Dimmable | Yes |
| Constant light output (CLO) | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming phase cut-off (trailing edge) | No |
| Dimming phase cut-on (leading edge) | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | Yes |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming DSI | No |
| Dimming DALI-2 | - |
| Emergency function monitoring system | - |
| Electrical | |
| Voltage type | AC |
| Suitable for lamp power | - |
| Number of poles | 5 |
| Nominal voltage | 220 |
| Nominal current | - |
| Max. system power | 120 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) | 27 |
| Max. number of luminaires per miniature circuit breaker B16 (MCB) | 16 |
| Emergency power supply system | - |
| Power consumption in emergency mode | - |
| Power factor | 0.95 |
| Setting/control | |
| Type of control gear | Electronic transformer |
| Dimming mains voltage modulation | No |
| Operation by Bluetooth | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Mounting/installation | |
| Suitable for wall mounting | - |
| Suitable for suspended mounting | - |
| Suitable for ceiling mounting | - |
| Material | |
| Housing material | Aluminium |
| Material reflector | Other |
| Application | |
| Suitable for emergency lighting | No |
| Suitable for auxiliary lamp | No |
| Other | |
| Light distribution | Symmetric |
| Impact strength | IK08 |
| Suitable for number of light sources | 1 |
| Beam angle | - |
| Rated lifetime L70/B50 at 25 °C | 100000 |
| Light distributor | Focal lens |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | - |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | - |
| Movement sensor/presence detector technology | - |
| Luminaire efficacy | - |
| Rated luminous flux according to IEC 62722-2- 1 | 21400 |
| Total harmonic distortion (THD) | - |
| Performance | |
| Luminous flux in emergency mode | - |
| Energy efficiency/environmental | |
| Photobiological safety according to EN 62471 | RG1 |
| Energy efficiency class of the light source according to EU regulation 2019/2015 | - |
| Containing product according to 2019/2020/EU | Yes |
| Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C) | - |
| Operating conditions | |
| Rated ambient temperature according to IEC 62722-2-1 | -30 |
| Approval/certification | |
| Filament test according to IEC 60695-2-11 | - |
| Package 1 | |
| volume | 0,026241 |
| weight | 8 |
| length | 0,67 |
| width | 0,373 |
| qmax | 1 |
| qmin | 1 |
| um | CT |
| gtin | 4018242362462 |
| Package 2 | |
| volume | 1,3152 |
| weight | 232 |
| length | 1,37 |
| width | 0,8 |
| qmax | 29 |
| qmin | 29 |
| um | PF |
| gtin | 4018242725175 |
| Dimensions of product | |
| Weight | 7,200 |
