Descriere

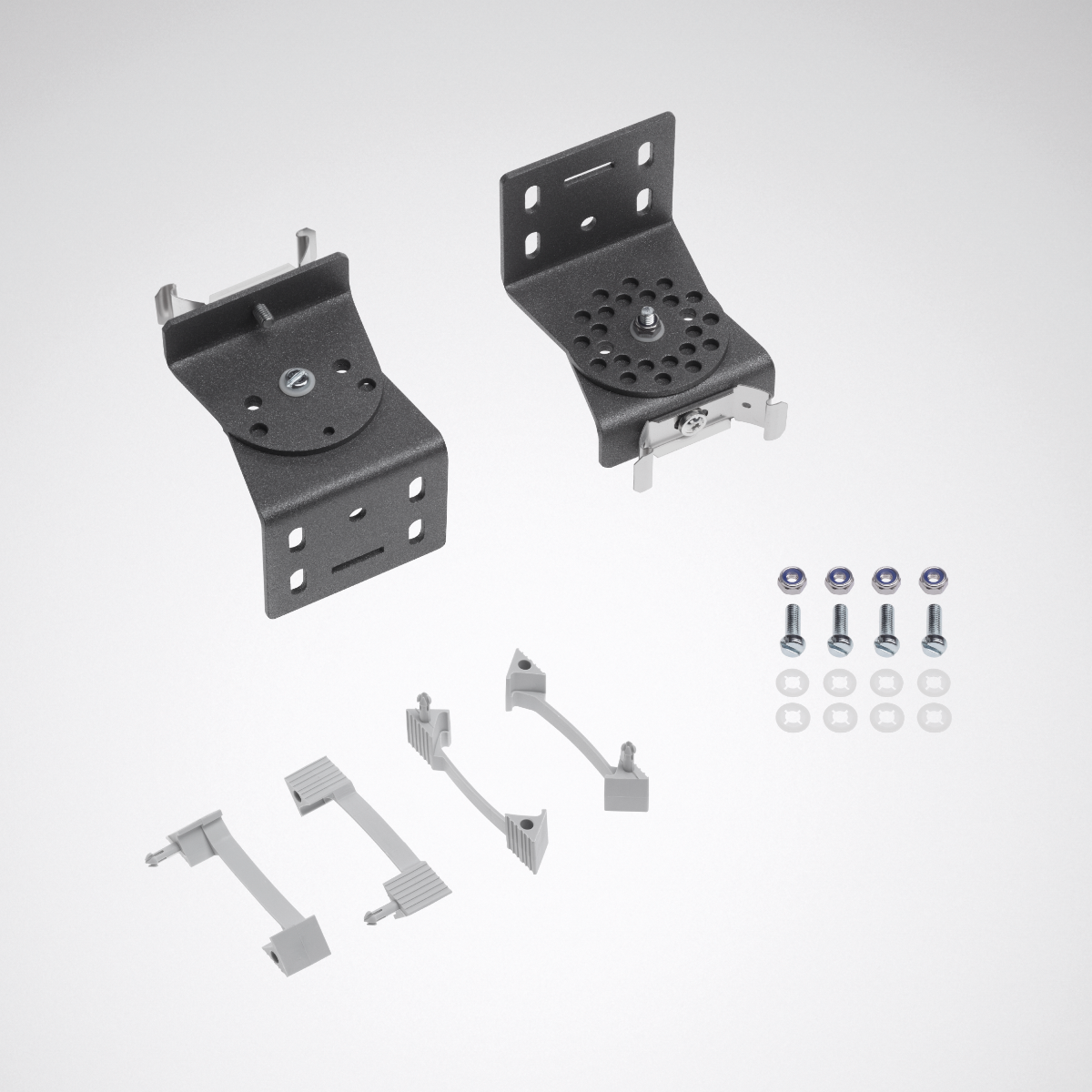

Pivotable mounting bracket for wall or ceiling mounting of LED weather-proof luminaires.1 set= 2 pieces. For use in combination with luminaire of the following series: AragonF, DeveoF, OleveonF. Suitable for damp environments and outdoor areas around buildings. Swivel range: 180°. With limited surface temperature, suitable for use in fire hazardous areas according to DIN EN 60598-2-24.
Documente
Specificatii
| Colour | |
| Colour | Anthracite |
| Transparent | - |

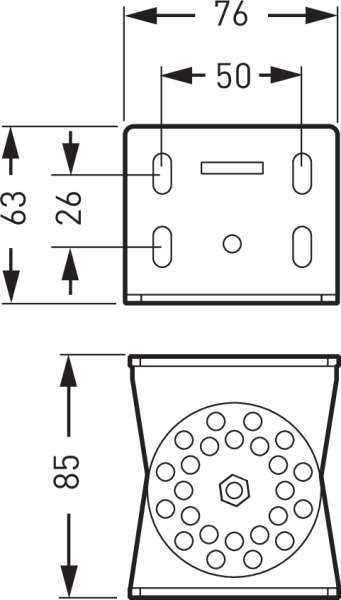

| Measurements | |
| Width | 65 |
| Height | 85 |
| Diameter | - |
| Length | 76 |
| Model/type | |
| Type of accessory/spare part | Mounting kit |
| Accessory | Yes |
| Spare part | - |
| Material | |
| Material | - |
| Package 1 | |
| volume | 0,004479 |
| weight | 1 |
| length | 0,217 |
| width | 0,172 |
| qmax | 1 |
| qmin | 1 |
| um | CT |
| gtin | 4018242560370 |
| Package 2 | |
| volume | 1,3152 |
| weight | 400 |
| length | 1,37 |
| width | 0,8 |
| qmax | 200 |
| qmin | 200 |
| um | PF |
| gtin | 4018242810383 |
| Dimensions of product | |
| Weight | 1,000 |
