Descriere

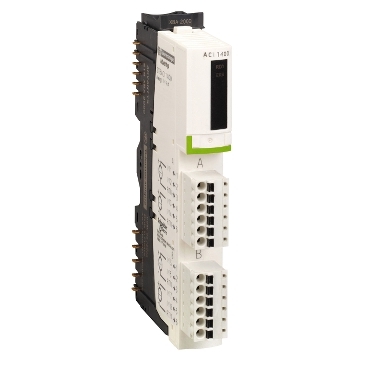

Kit Standard Input Analog Stb - 4 - 20 Ma - 8 I - 15 Biti + Semn
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Communication | |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces parallel | 0 |
| Supporting protocol for SERCOS | No |
| Number of HW-interfaces other | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces wireless | 0 |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for KNX | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for LON | No |
| Supporting protocol for other bus systems | No |
| Supporting protocol for SUCONET | No |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Options | |
| Analogue inputs configurable | Yes |
| Analogue outputs configurable | No |
| System accessory | Yes |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Mobile communications standard 3G (UMTS) | No |
| Radio standard Bluetooth | No |
| Radio standard WLAN 802.11 | No |
| IO link master | No |
| Output, voltage | No |
| Rack-assembly possible | Yes |
| Approval/certification | |
| SIL according to IEC 61508 | None |
| Performance | |
| Performance level according to EN ISO 13849-1 | None |
| Measurements | |
| Height | 18.4 mm |
| Width | 128.3 mm |
| Depth | 70 mm |
| Connection | |
| Fieldbus connection over separate bus coupler possible | Yes |
| Input, thermocouple | No |
| Input signal, configurable | Yes |
| Type of electric connection | Screw connection |
| Input, resistor | No |
| Input, resistance thermometer | No |
| Input, current | Yes |
| Output signal configurable | No |
| Output, current | No |
| Number of analogue outputs | 0 |
| Number of analogue inputs | 8 |
| Protection | |
| Explosion safety category for dust | Other |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | - |
| Electrical | |
| Voltage type (supply voltage) | DC |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 24 V |
| Setting/control | |
| Input, voltage | No |
| Other | |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Resolution of the analogue outputs | - |
| Resolution of the analogue inputs | 15 bit |
| Mounting/installation | |
| Front built-in possible | No |
| Suitable for rail mounting | Yes |
| Wall mounting/direct mounting | No |
| Application | |
| Suitable for safety functions | No |
| Package 1 | |
| volume | 260 cm3 |
| weight | 147 g |
| length | 13 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3595863948400 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 4,542 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 28 |
| qmin | 28 |
| um | CT |
| gtin | 13595863948407 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 130 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 448 |
| qmin | 448 |
| um | PF |
