Descriere

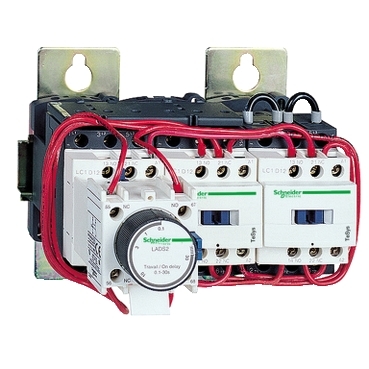

Star delta starter, TeSys Deca, 3x3P(3NO), 80A, 230V AC coil, screw clamp terminal
Documente
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 230 V |
| Rated control supply voltage AC 60 Hz | 230 V |
| Rated operation power at AC-3, 400 V | 75 kW |
| Rated operation power NEMA | - |
| Rated operation current Ie at AC-1, 400 V | - |
| Rated operation current Ie at AC-3, 400 V | 80 A |
| Rated control supply voltage DC | - |
| Voltage type for actuating | AC |
| Mounting/installation | |
| Suitable for rail mounting | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Model/type | |
| Function | Star-delta contactor |
| Package 1 | |
| volume | 27552 cm3 |
| weight | 6,106 kg |
| length | 41 cm |
| width | 24 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110453614 |
| Package 2 | |
| volume | 360000 cm3 |
| weight | 50,926 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 6 |
| qmin | 6 |
| um | PF |
| gtin | 73389110453613 |
