Descriere

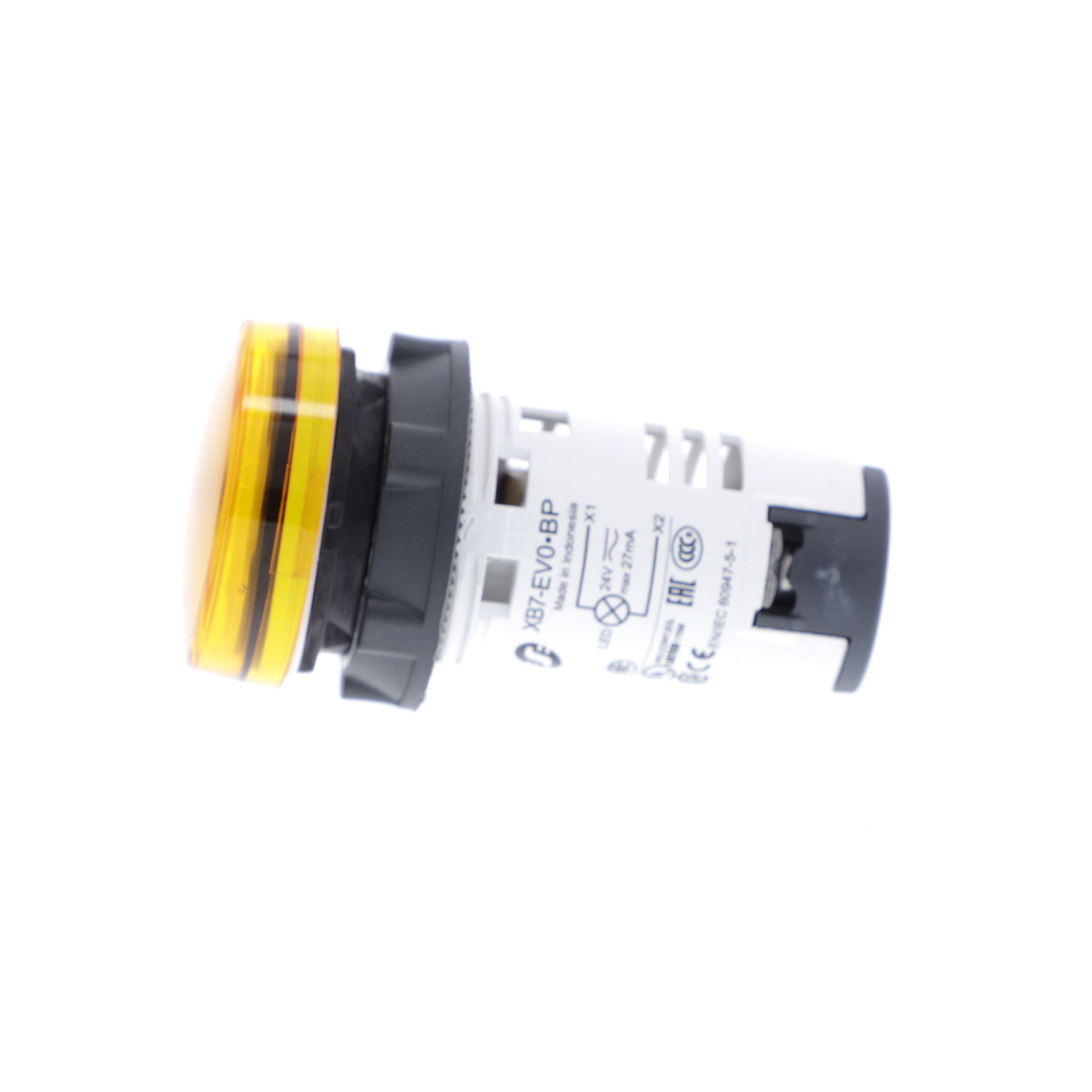

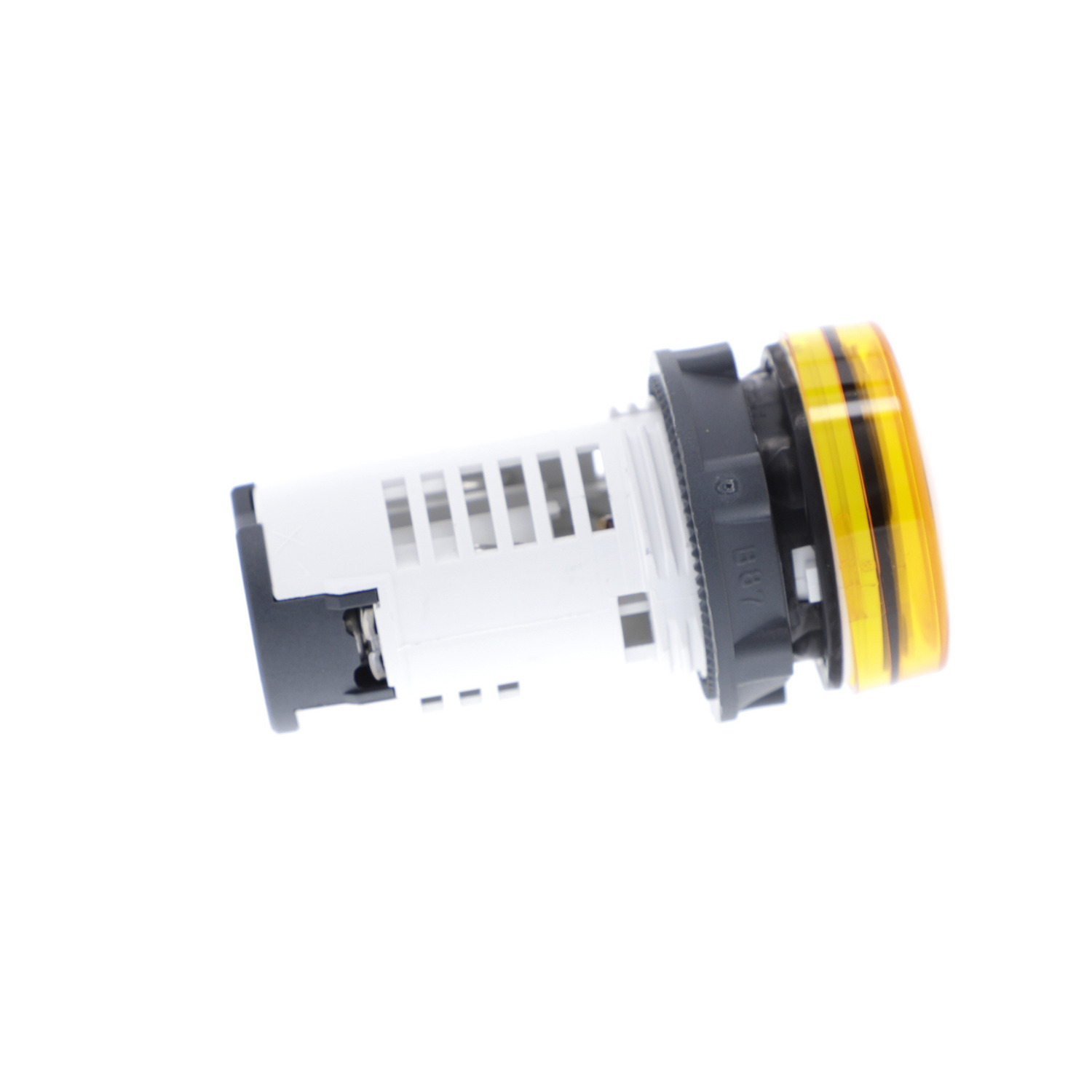

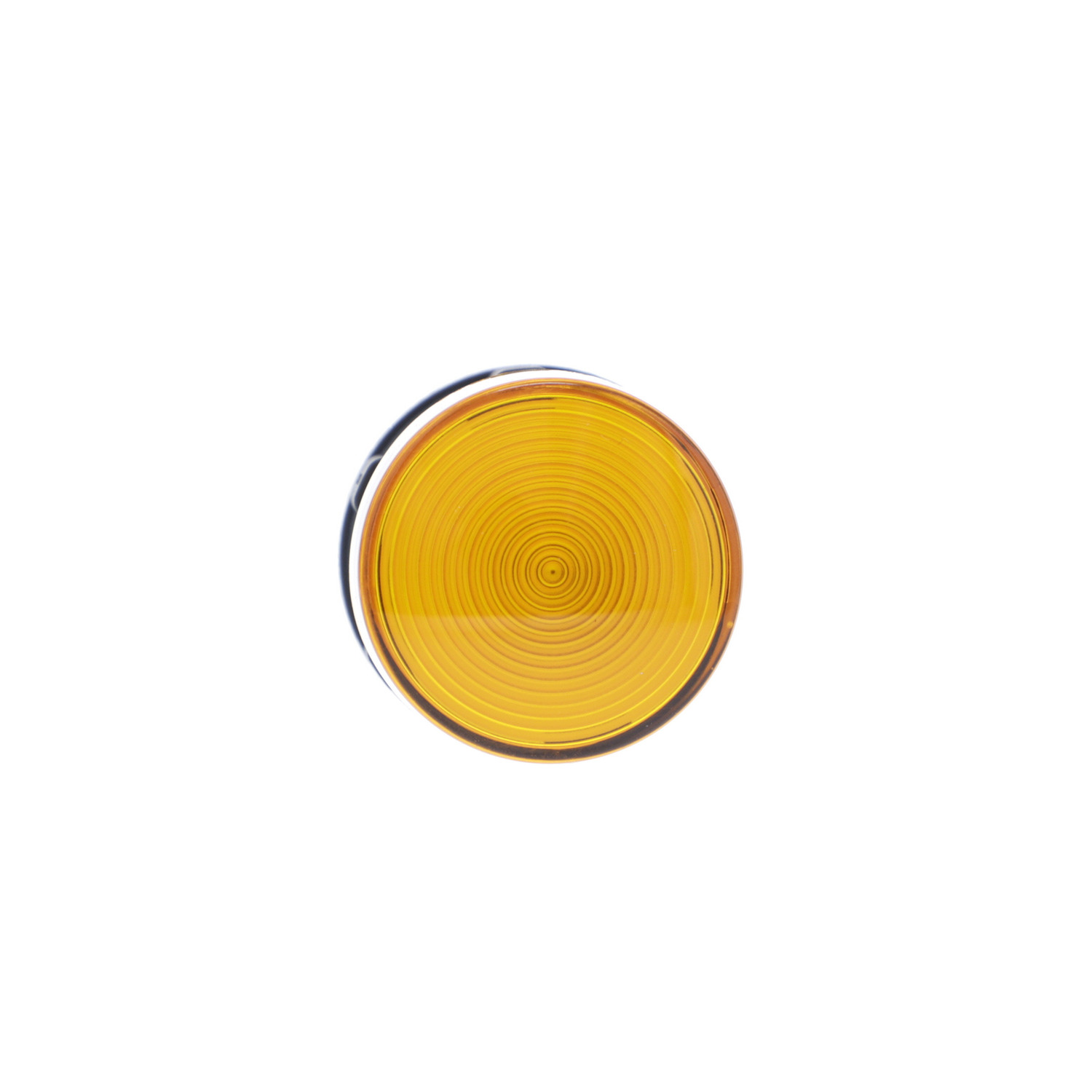

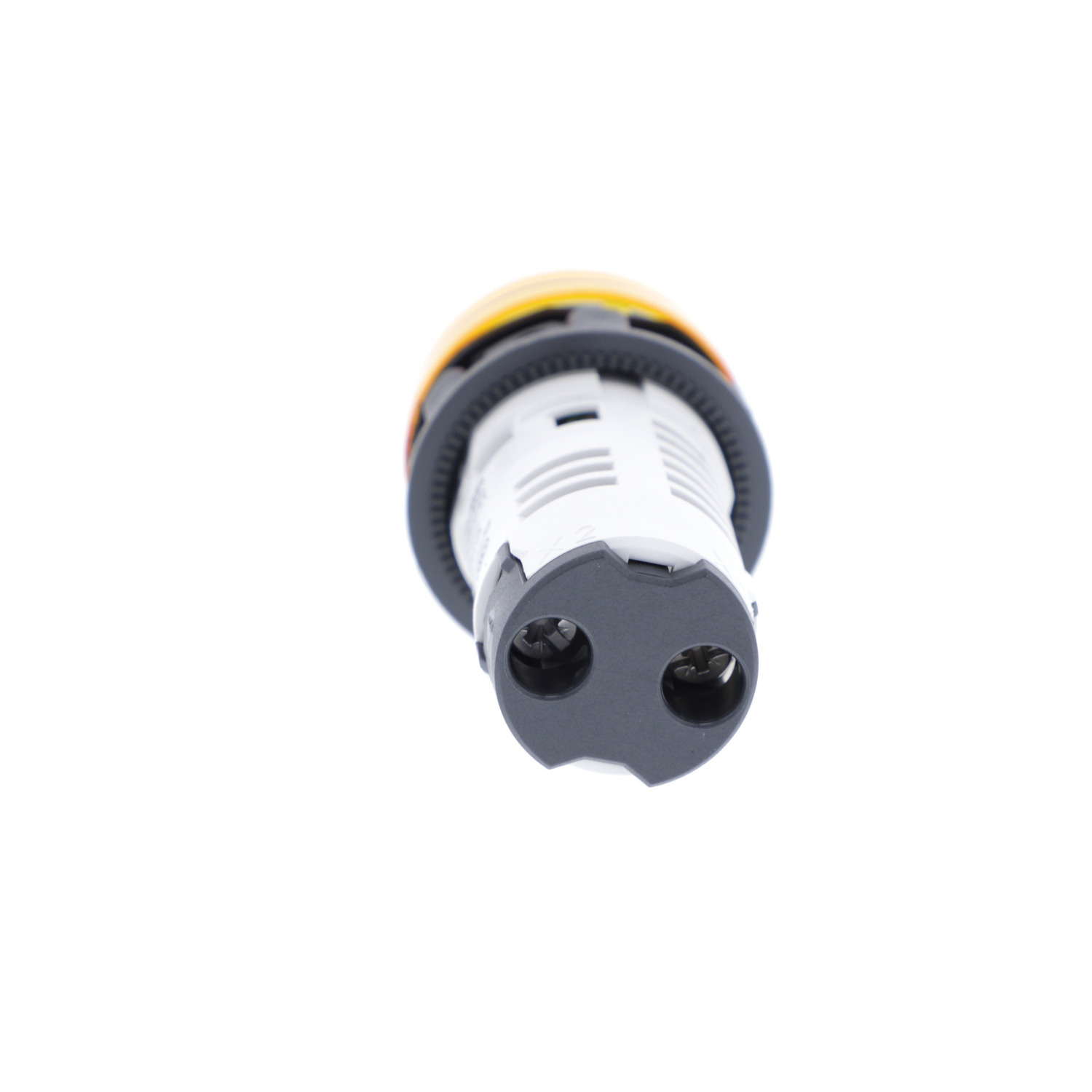

Lampa Pilot Rotunda Ø 22, Portocalie, Led Integral, 24 V, Borne Clema-surub
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Model/type | |
| Number of indicator lights | 1 |
| With light source | Yes |
| Type of lamp socket | LED |
| Construction type lens | Round |
| With front ring | No |
| Type of lens | High |
| Colour | |
| Colour lens | Orange |
| Colour front ring | Other |
| Electrical | |
| Rated operating voltage Ue | 24 V |
| Voltage type | AC/DC |
| Connection | |
| Type of electric connection | Screw connection |
| Material | |
| Material front ring | Other |
| Measurements | |
| Hole diameter | 22.5 mm |
| Width opening | - |
| Height opening | - |
| Protection | |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | Other |
| Package 1 | |
| volume | 450 cm3 |
| weight | 18 g |
| length | 7,5 cm |
| width | 10 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119021906 |
| Package 2 | |
| volume | 960 cm3 |
| weight | 187 g |
| length | 16 cm |
| width | 10 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13389119021903 |
| Package 3 | |
| volume | 9000 cm3 |
| weight | 2,147 kg |
| length | 40 cm |
| width | 15 cm |
| qmax | 100 |
| qmin | 100 |
| um | CT |
| gtin | 43389119021904 |
