Descriere

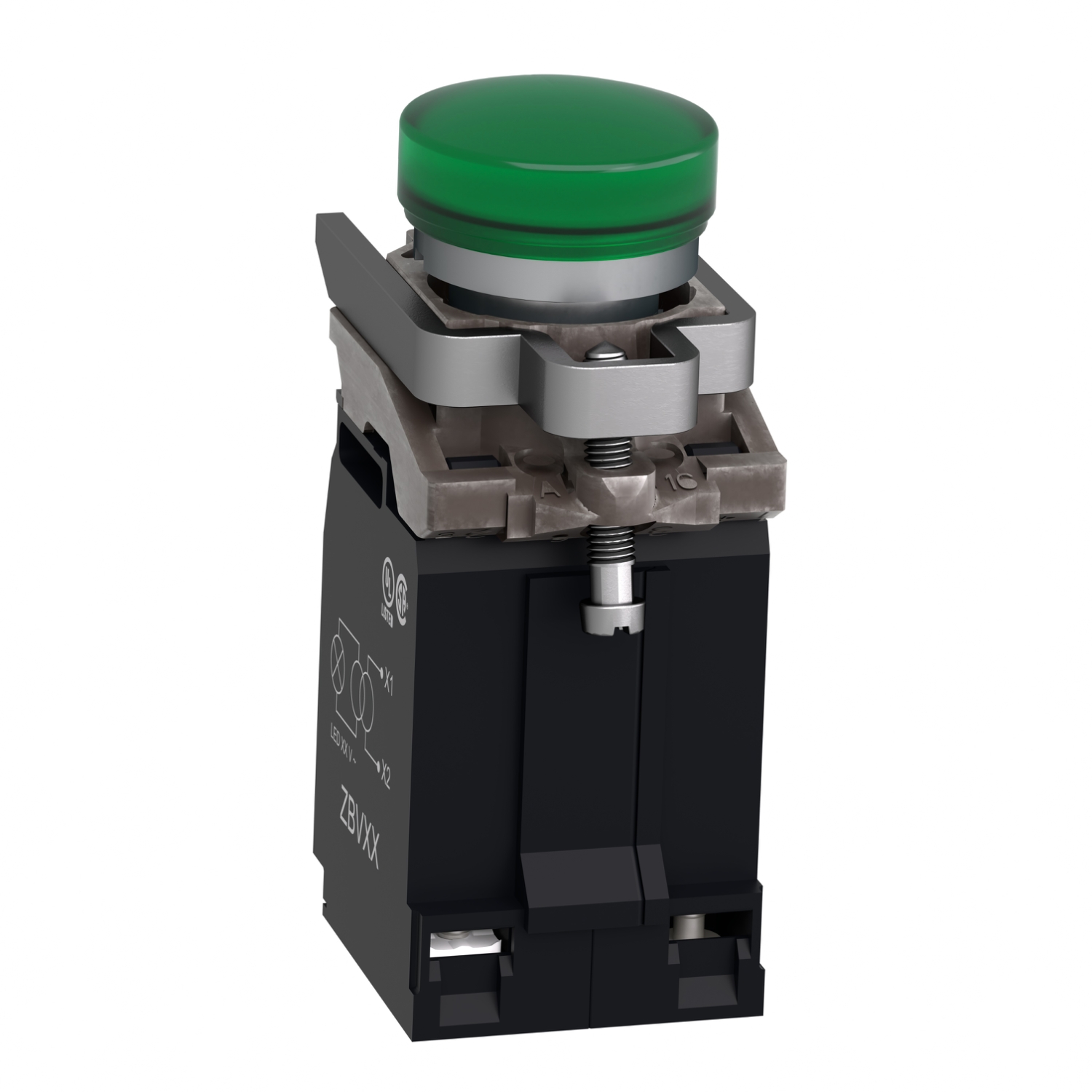

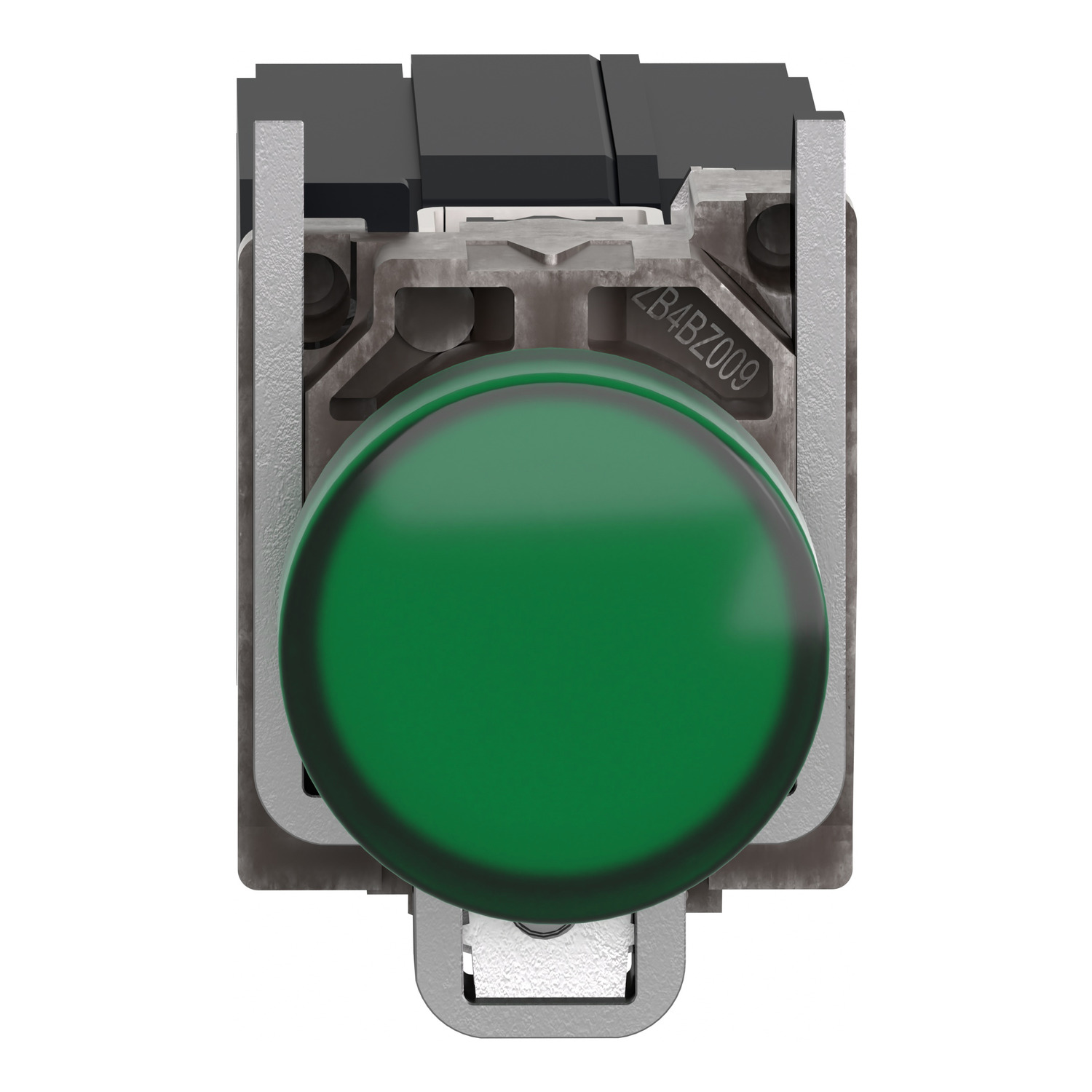

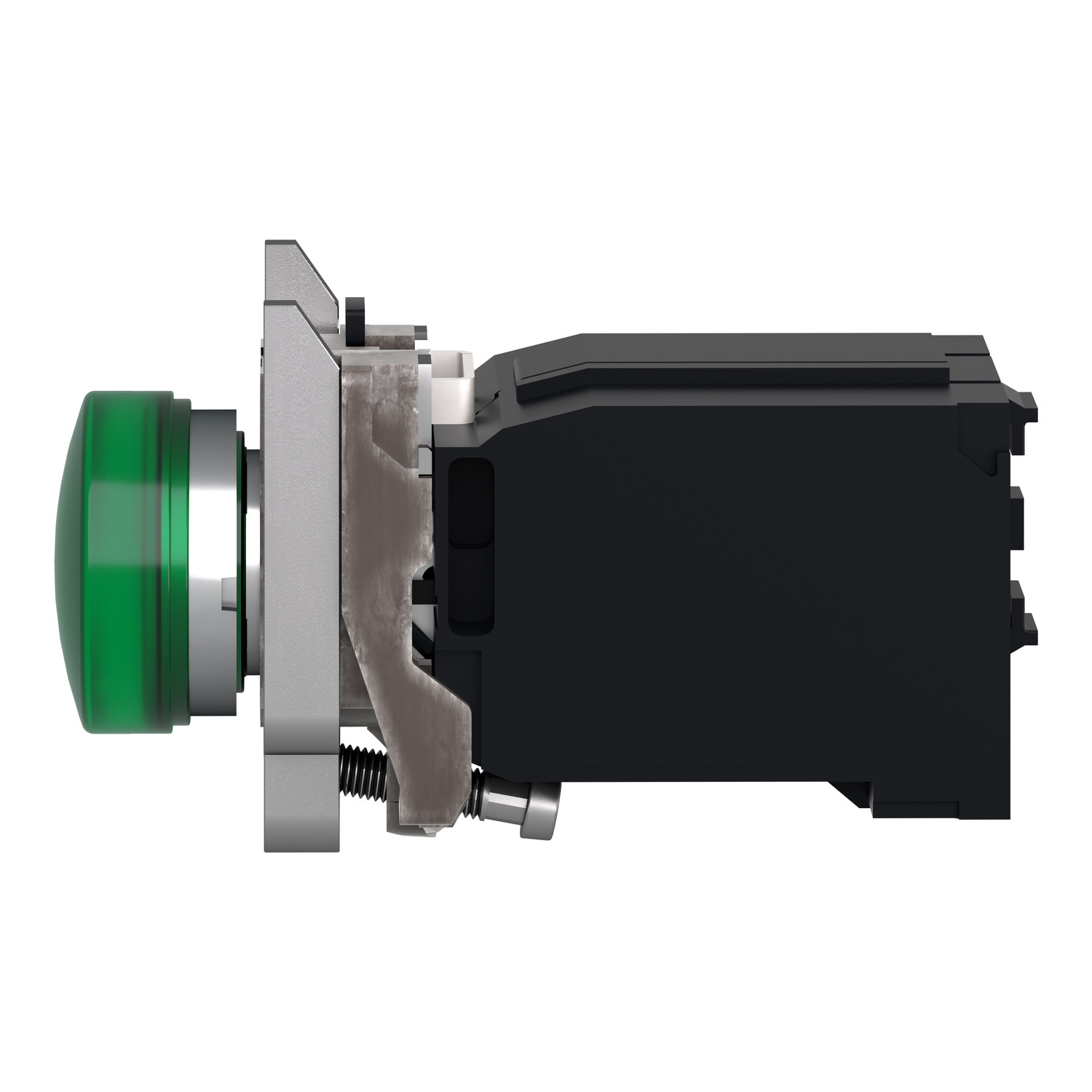

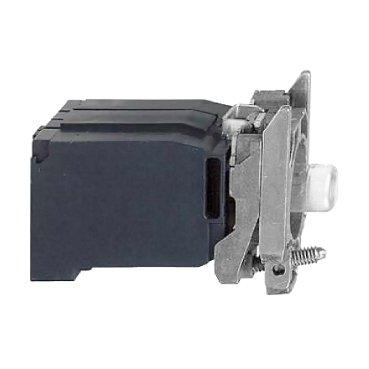

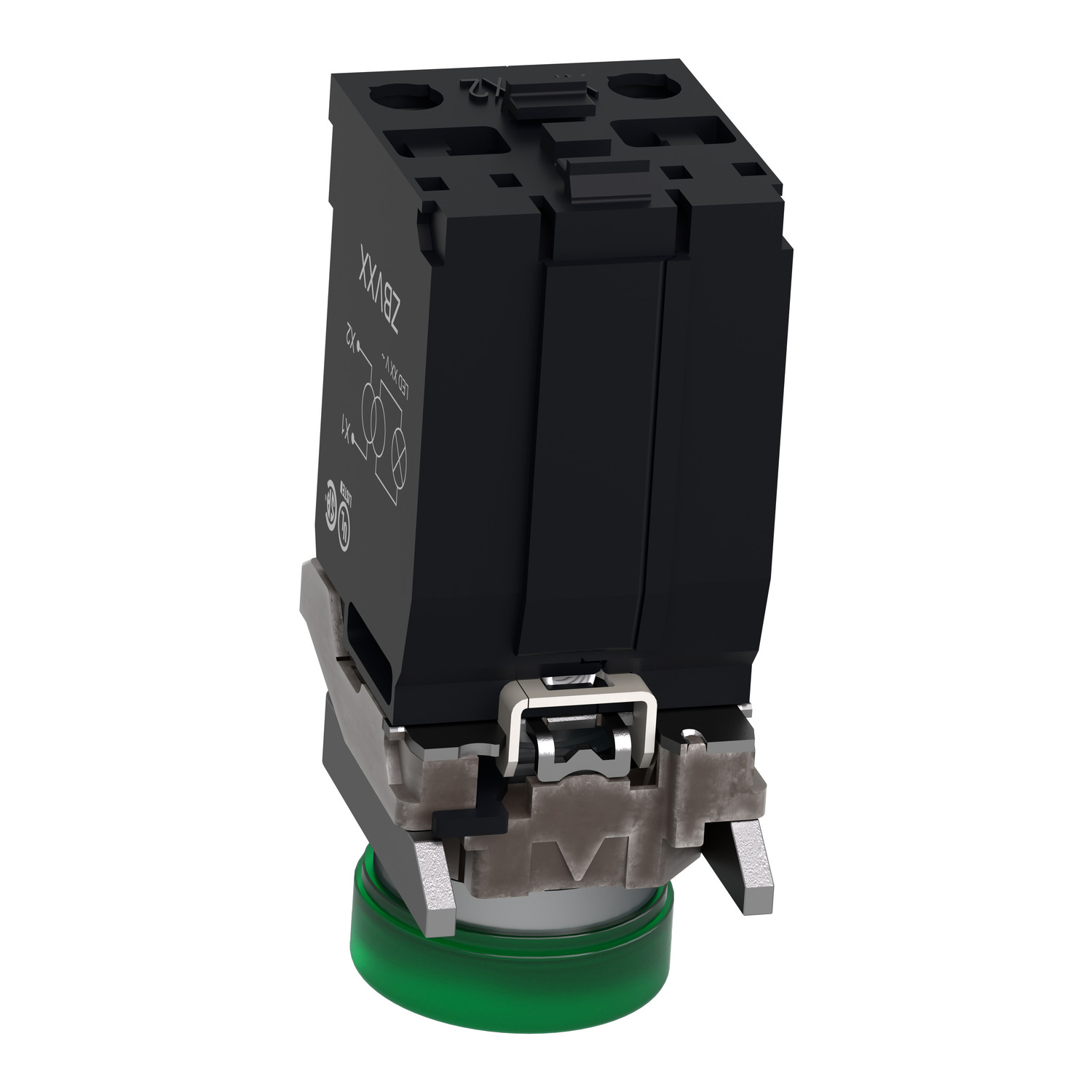

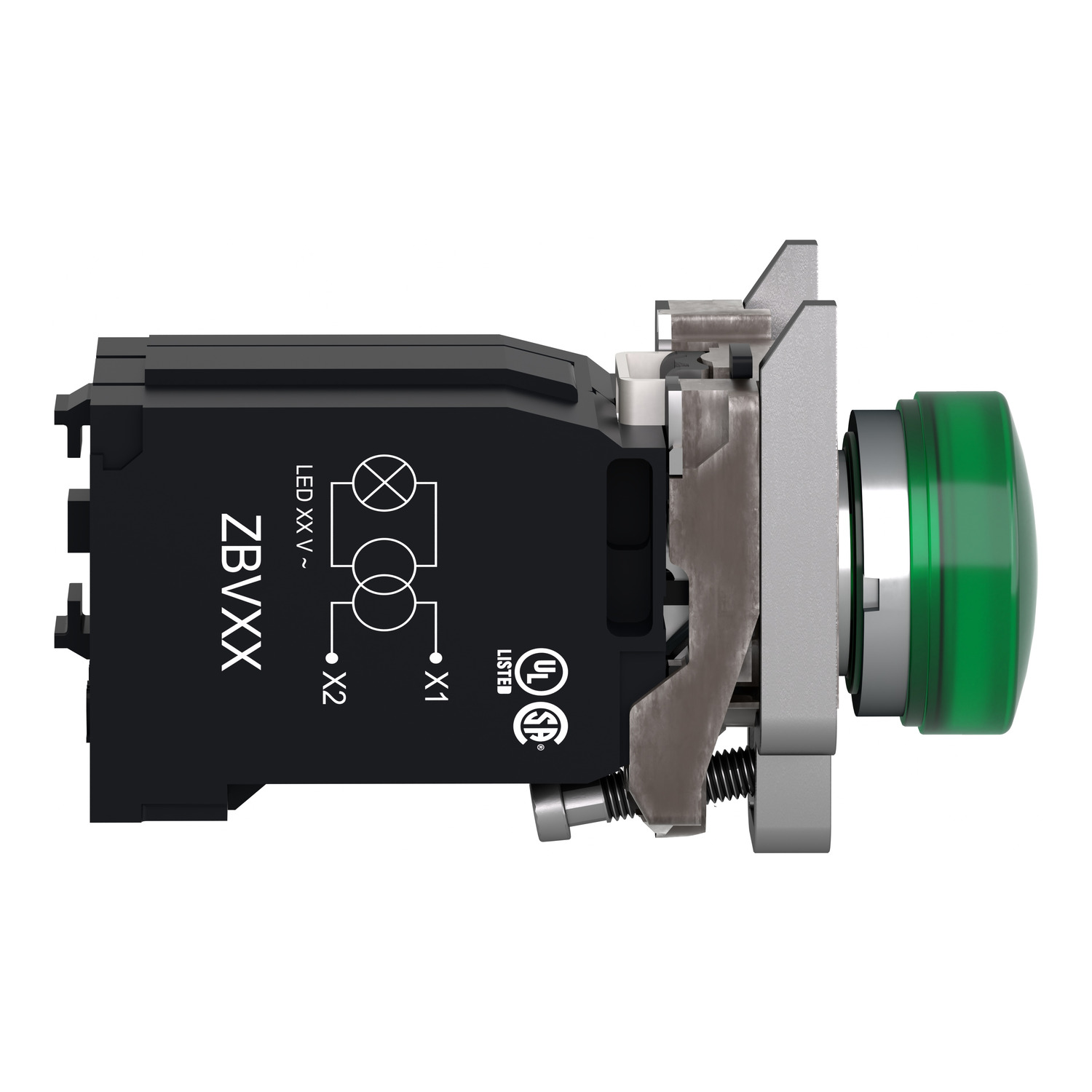

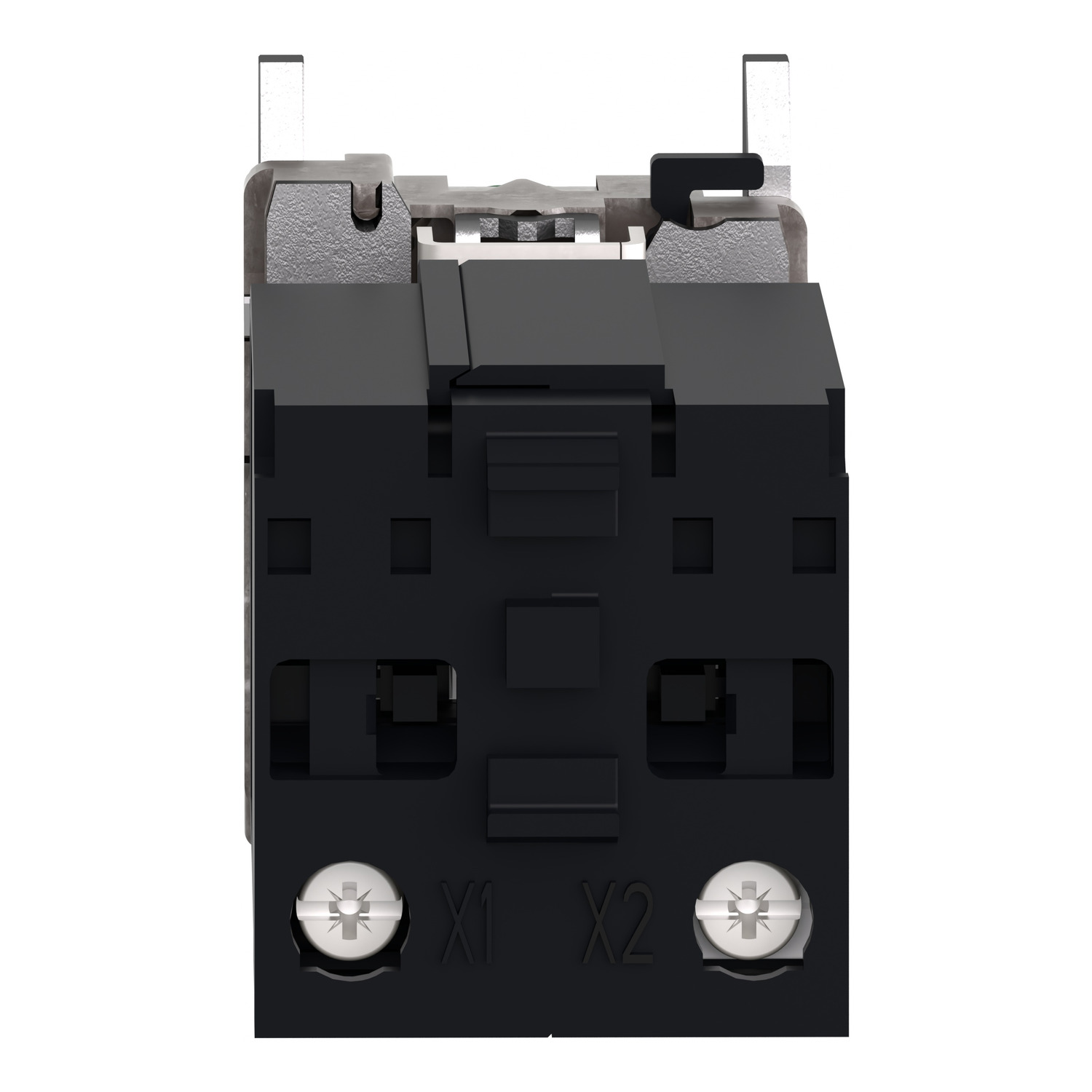

Lampa Pilot Completa Verde Ø22Lentile Plane cu Led Integral 400V
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| With light source | Yes |
| Number of indicator lights | 1 |
| Type of lamp socket | LED |
| Construction type lens | Round |
| With front ring | Yes |
| Type of lens | Flat |
| Colour | |
| Colour lens | Green |
| Colour front ring | Chrome |
| Electrical | |
| Rated operating voltage Ue | 400 V |
| Voltage type | AC/DC |
| Connection | |
| Type of electric connection | Screw connection |
| Material | |
| Material front ring | Metal |
| Measurements | |
| Hole diameter | 22.5 mm |
| Width opening | - |
| Height opening | - |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | Other |
| Package 1 | |
| volume | 235,008 cm3 |
| weight | 172 g |
| length | 12,8 cm |
| width | 5,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119039499 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 3,779 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 43389119039497 |
