Descriere

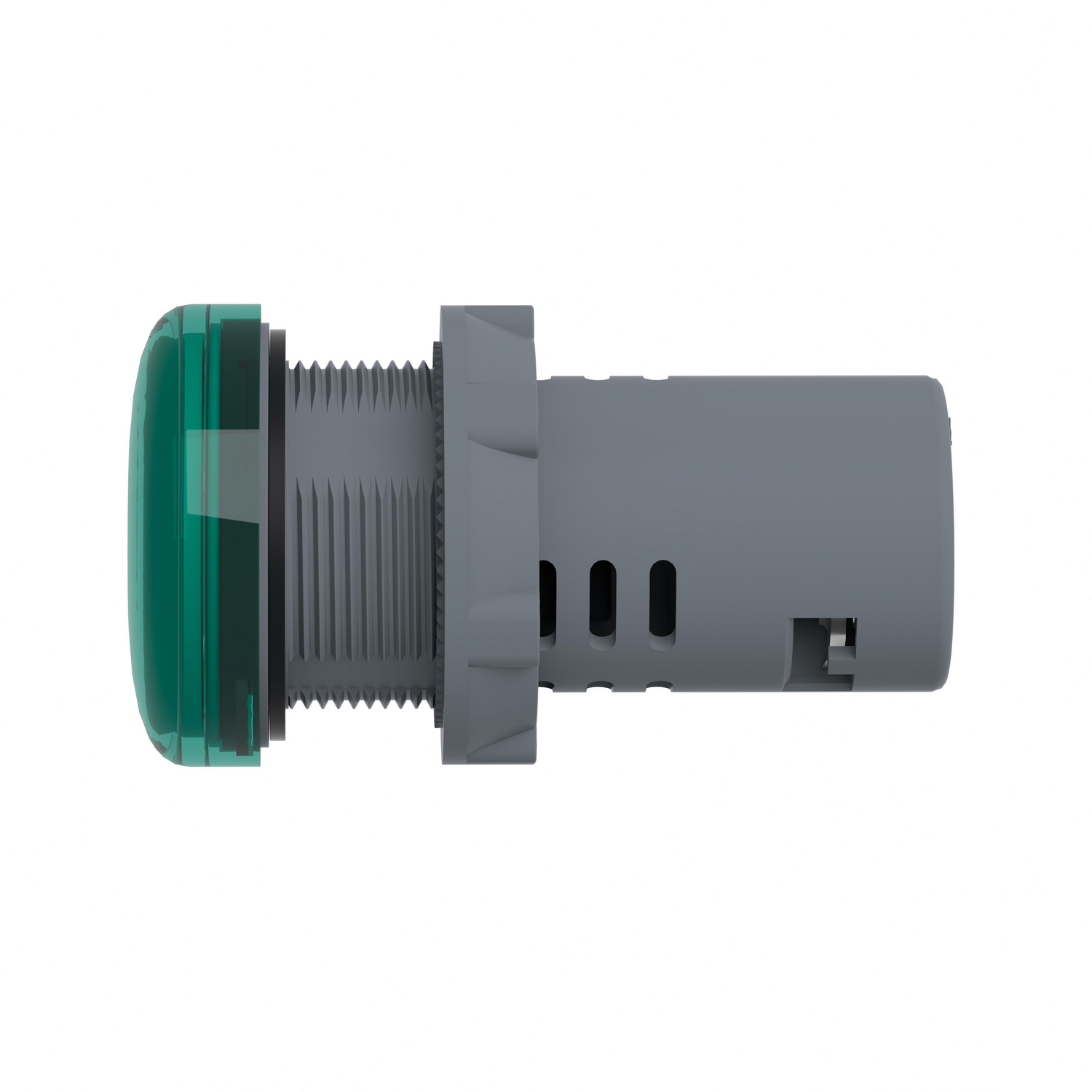

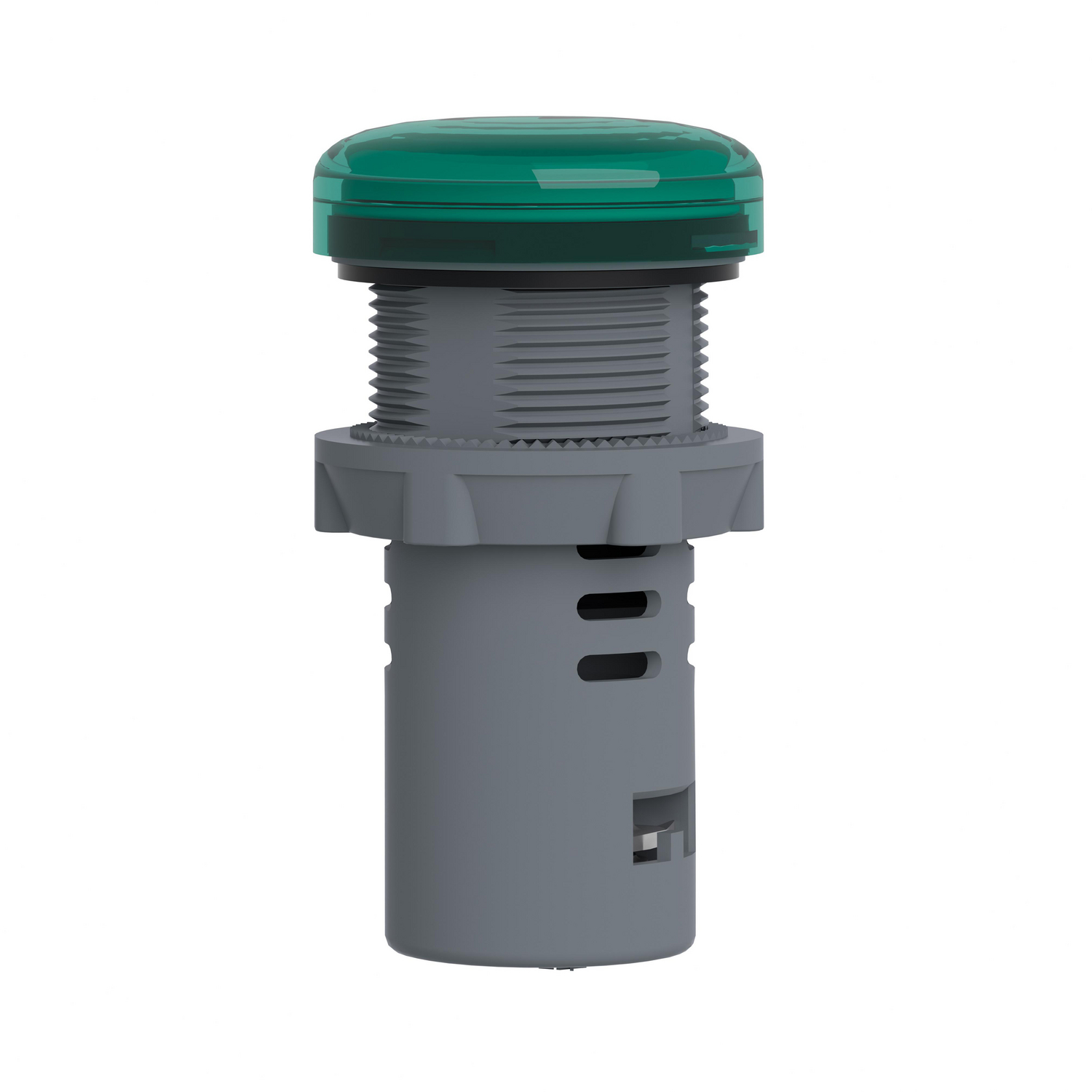

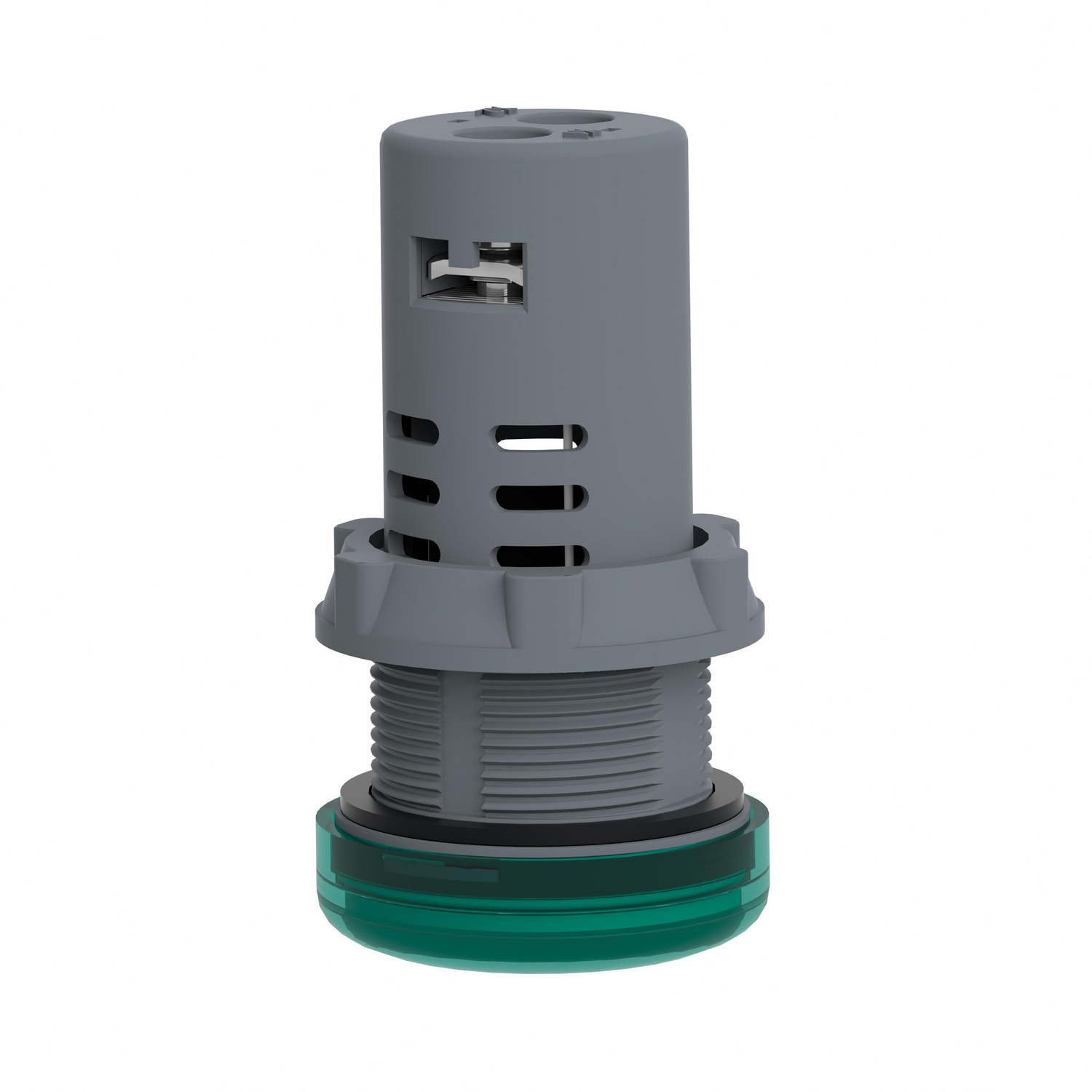

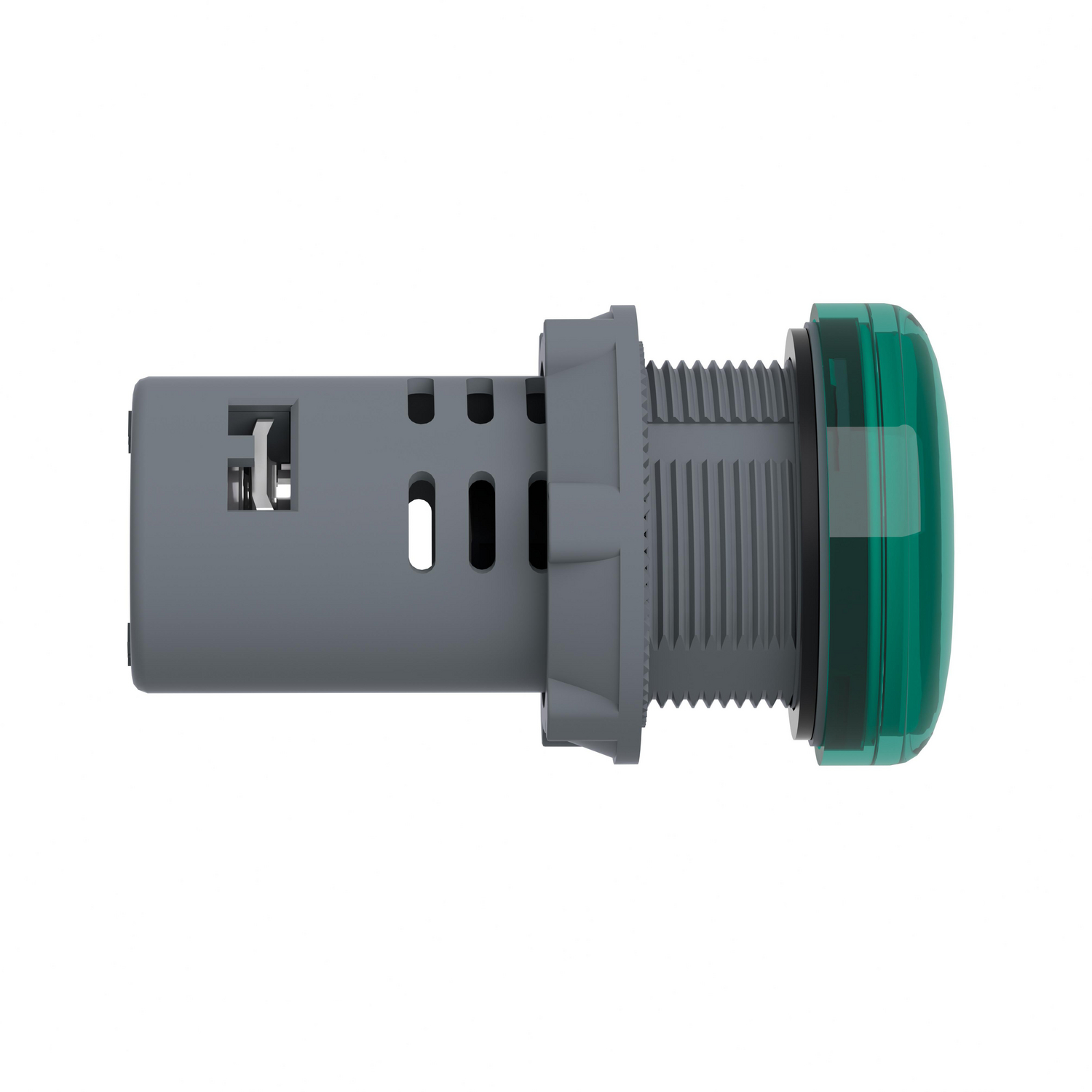

Lumina de control, 220V AC, verde
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| With light source | Yes |
| Number of indicator lights | 1 |
| Type of lamp socket | LED |

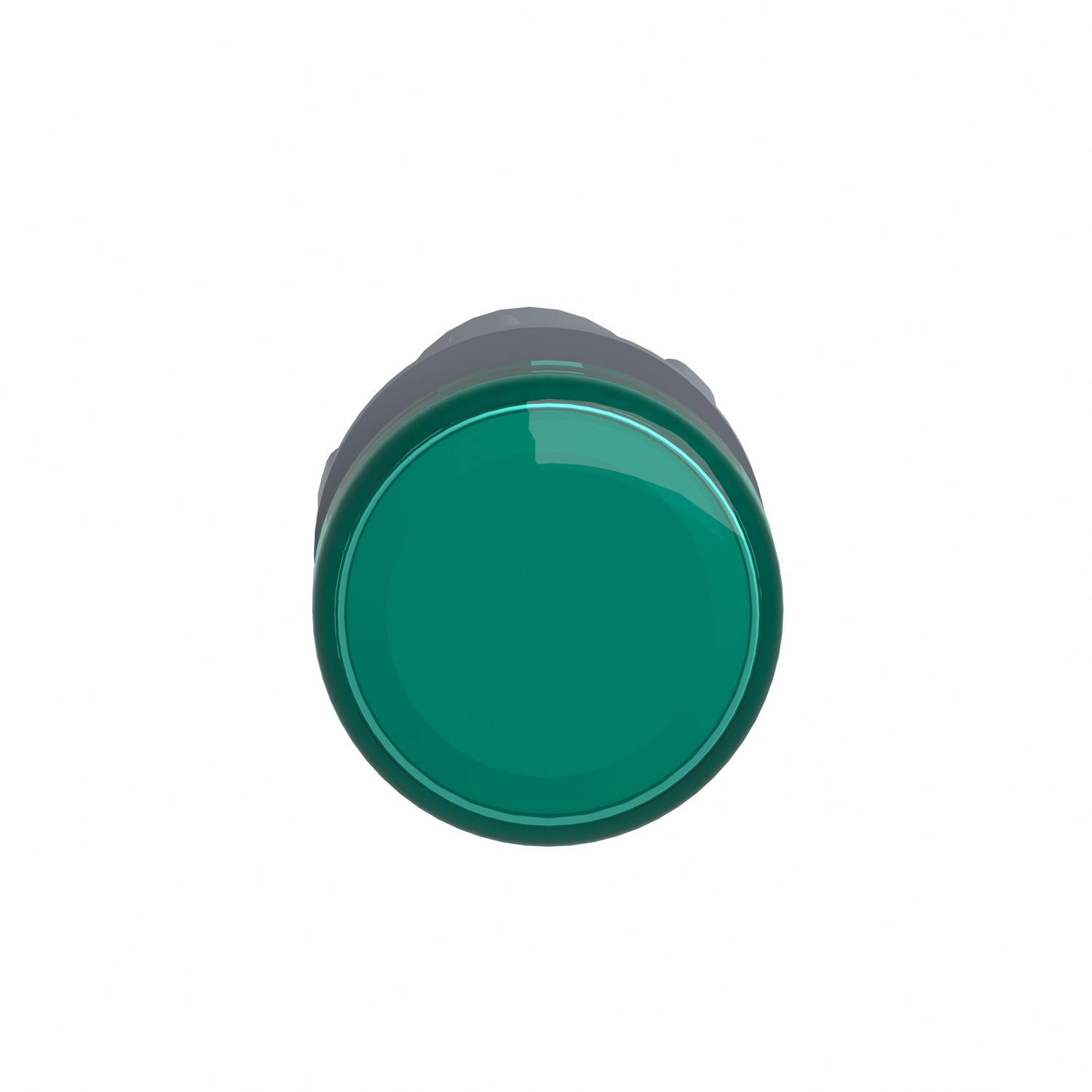

| Construction type lens | Round |
| With front ring | Yes |
| Type of lens | Flat |
| Colour | |
| Colour lens | Green |
| Colour front ring | Black |
| Electrical | |
| Rated operating voltage Ue | 220 V |
| Voltage type | AC |
| Connection | |

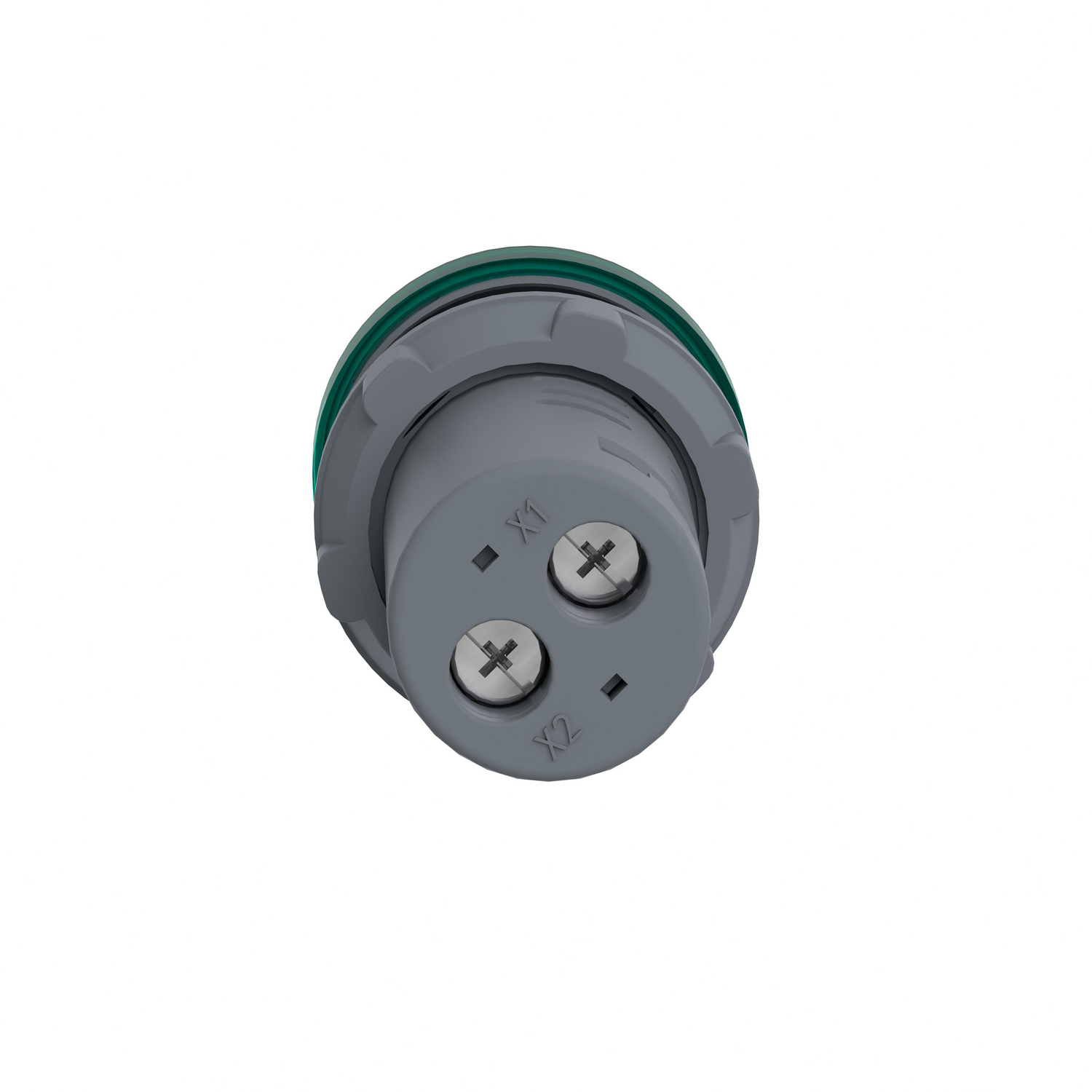

| Type of electric connection | Screw connection |
| Material | |
| Material front ring | Plastic |
| Measurements | |
| Hole diameter | 22.5 mm |
| Width opening | - |
| Height opening | - |
| Protection | |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | - |
| Package 1 | |
| volume | 46,255 cm3 |
| weight | 25 g |
| length | 2,9 cm |
| width | 2,9 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480989117 |
| Package 2 | |
| volume | 586,496 cm3 |
| weight | 300 g |
| length | 15,8 cm |
| width | 6,4 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480989114 |
| Package 3 | |
| volume | 18000 cm3 |
| weight | 5,8 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 160 |
| qmin | 160 |
| um | CT |
| gtin | 43606480989115 |
| Package 4 | |
| weight | 287 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 7680 |
| qmin | 7680 |
| um | PF |
