Descriere

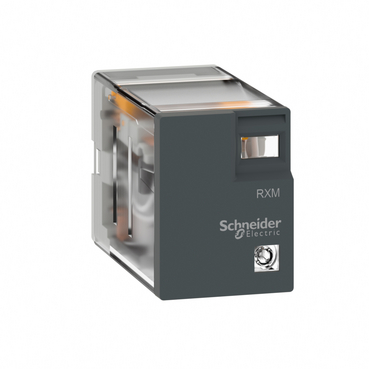

Releu miniatura 3A,4C/O, cu LED, 24V C.C.
Documente
Fisa tehnica
Declaratie de conformitate
Alte surse
Specificatii
| Measurements | |
| Width | 21 mm |
| Depth | 46 mm |
| Height | 27 mm |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Nominal current | 3 A |
| Voltage type for actuating | DC |
| Rated control supply voltage DC | 24 V |
| Connection | |
| Type of electric connection | Other |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 4 |
| Number of contacts as normally closed contact | 0 |
| Other | |
| Drive, switching attitude | Mono stable |
| Drive, polarization | Polarity free |
| Model/type | |
| With forced-guided contacts | Yes |
| With LED indication | Yes |
| Type of switch contact | Other |
| With detachable clamps | Yes |
| Mounting/installation | |
| Complete with socket | No |
| Material | |
| Material of contact insert | Other |
| Material of contact surface | Other |
| Material contact | Other |
| Protection | |
| Degree of protection (IP) | IP40 |
| Package 1 | |
| volume | 27 cm3 |
| weight | 35,5 g |
| length | 4,5 cm |
| width | 3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119215350 |
| Package 2 | |
| volume | 452,608 cm3 |
| weight | 393 g |
| length | 12,8 cm |
| width | 10,4 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13389119215357 |
| Package 3 | |
| volume | 18000 cm3 |
| weight | 11,102 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 270 |
| qmin | 270 |
| um | CT |
| gtin | 43389119215358 |
| Package 4 | |
| weight | 176,448 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 4320 |
| qmin | 4320 |
| um | PF |
Accesorii

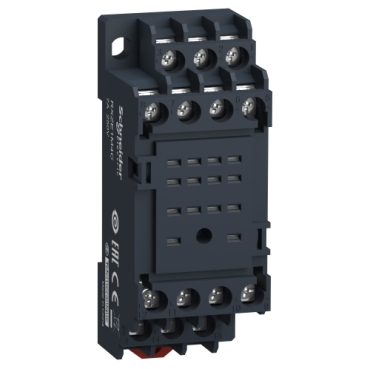

Soclu Rxz- Cont. Mixte- 7 A - 250 V- Clema Cu Surub- Pentru Releu Rxm2 -
Cod: RXZE1M4C
Schneider Electric
Soclu Rxz- Cont. Mixte- 7 A - 250 V- Clema Cu Surub- Pentru Releu Rxm2 -
Cod: RXZE1M4C
Schneider Electric
