Descriere

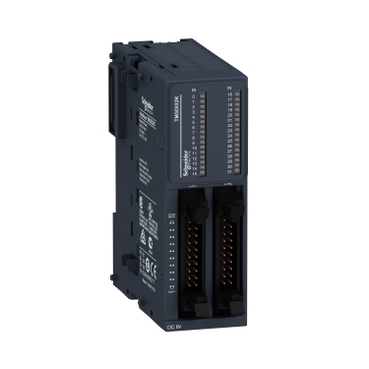

Module TM3, 32 Intrari He10
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Input current at signal 1 | 5 mA |
| Output current | - |
| Voltage type (supply voltage) | DC |
| Permitted voltage at output | - |
| Supply voltage AC 50 Hz | - |
| Permitted voltage at input | 19.2 V |
| Supply voltage AC 60 Hz | - |
| Type of voltage (input voltage) | AC/DC |
| Type of output voltage | - |
| Supply voltage DC | 24 V |
| Connection | |
| Type of electric connection | Other |
| Short-circuit protection, outputs available | No |
| Number of digital outputs | 0 |
| Number of digital inputs | 32 |
| Approval/certification | |
| SIL according to IEC 61508 | None |
| Options | |
| Digital inputs configurable | No |
| Digital outputs configurable | No |
| Model/type | |
| Type of digital output | None |
| Performance | |
| Performance level according to EN ISO 13849-1 | None |
| Other | |
| Appendant operation agent (Ex ia) | No |
| Time delay at signal change | 4 ms |
| Appendant operation agent (Ex ib) | No |
| Measurements | |
| Height | 90 mm |
| Width | 33.5 mm |
| Depth | 81.3 mm |
| Application | |
| Suitable for safety functions | No |
| Protection | |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Package 1 | |
| volume | 1037,2119615 cm3 |
| weight | 220 g |
| length | 12,87 cm |
| width | 10,55 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480611414 |
| Package 2 | |
| volume | 66681,992 cm3 |
| weight | 10,431 kg |
| length | 55,9 cm |
| width | 40,3 cm |
| qmax | 42 |
| qmin | 42 |
| um | CT |
| gtin | 43606480611412 |
| Package 3 | |
| volume | 1008000 cm3 |
| weight | 133 kg |
| length | 80 cm |
| width | 120 cm |
| qmax | 504 |
| qmin | 504 |
| um | PF |
