Descriere

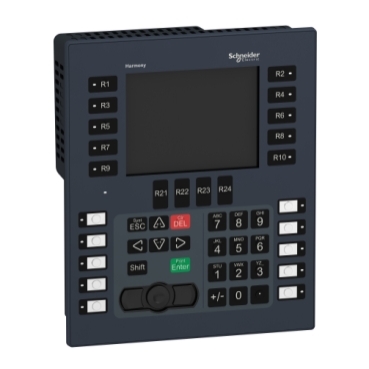

Keypad-panou cu ecran tactil color - 320 x 240 pixeli QVGA- 5.7" - TFT LCD
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| With message indication | Yes |
| With numeric keyboard | No |
| Number of grey-scales/blue-scales of display | - |
| With alpha numeric keyboard | Yes |
| Number of buttons with LED | 24 |
| With message system (incl. buffer and confirmation) | Yes |
| Type of display | TFT |
| With printer output | Yes |
| With recipes | Yes |
| Setting/control | |
| Number of function buttons, programmable | 14 |
| Number of system buttons | 8 |
| Communication | |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces parallel | 0 |
| Supporting protocol for SERCOS | No |
| Number of HW-interfaces other | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 2 |
| Number of HW-interfaces wireless | 0 |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| With SW interfaces | Yes |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for TCP/IP | Yes |
| Supporting protocol for KNX | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for LON | No |
| Supporting protocol for other bus systems | Yes |
| Supporting protocol for SUCONET | No |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces RS-232 | 1 |
| Performance | |
| Usable project memory/user memory | 128000 kByte |
| Protection | |
| Degree of protection (NEMA), front side | 4X |
| Degree of protection (IP), front side | IP65/IP67 |
| Options | |
| Radio standard GPRS | No |
| Process value representation (output) possible | Yes |
| Process default value (input) possible | Yes |
| Radio standard GSM | No |
| Mobile communications standard 3G (UMTS) | No |
| Additional software components, loadable | Yes |
| Radio standard Bluetooth | No |
| Radio standard WLAN 802.11 | No |
| Colour display | Yes |
| IO link master | No |
| Other | |
| Number of password levels | - |
| Number of online languages | - |
| Touch technology | Resistive touch |
| Number of pixels, horizontal | 1024 |
| Number of pixels, vertical | 1024 |
| Operating conditions | |
| Operating temperature | 0 °C |
| Measurements | |
| Screen diagonal | 5.7 in |
| Built-in depth | 70 mm |
| Width of the front | 220 mm |
| Height of the front | 265 mm |
| Electrical | |
| Voltage type (supply voltage) | AC/DC |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 24 V |
| Colour | |
| Number of colours of the display | 65536 |
| Mounting/installation | |
| Suitable for rail mounting | No |
| Wall mounting/direct mounting | Yes |
| Application | |
| Suitable for safety functions | Yes |
| Package 1 | |
| volume | 41760 cm3 |
| weight | 4,135 kg |
| length | 43,5 cm |
| width | 40 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480992087 |
| Package 2 | |
| volume | 1065600 cm3 |
| weight | 81,16 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 16 |
| qmin | 16 |
| um | PF |
