CIRCUIT BREAKER SIZE S0 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 10...16 A N-RELEASE 208 A SCREW TER

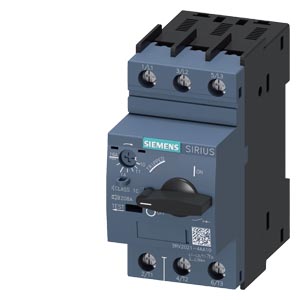

Circuit breaker size S0

Circuit breaker size S0 provides reliable motor protection with a wide range of features for safe operation and effective overload management.

Technical details:

• CLASS 10 A-release 10...16 A N-release 208 A
• Screw terminal
• Standard switching capacity
• Circuit breaker SIRIUS 3RV2
• Worldwide approvals (e.g. IEC and UL/CSA)
• Applications in hazardous areas (ATEX or IEC Ex)
• Device versions available for motor protection, plant protection, short-circuit protection of starter combinations, transformer protection, main and EMERGENCY OFF switches, and for use in IT networks
• Available with screw or spring-type terminals
• Optionally with integral auxiliary switch
• Comprehensive range of accessories standardized for all sizes
• Use of different energy infeed options, such as the associated SIRIUS 3RV29 infeed system
• 3RV2 circuit breakers replace the well-proven 3RV1 series

Customer benefits:

• Reliable shutdown in the event of a short-circuit
• Protection of loads and system against overload
• Safe isolation of the system from the network
• Low heat loss
• Optimized for use in load feeders and for IE3/IE4 motors
• Fast, maintenance-free and vibration-proof connection
• Simple, efficient, and always up to date with the SIRIUS modular system
