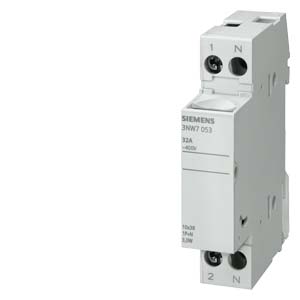

CYLINDRICAL FUSE HOLDER, 10X38 MM, 1P+N, IN: 32 A, UN AC: 690V
Cod produs: 3NW7053
Alte coduri:
upc: 754554924892
Descriere
SENTRON
The SENTRON cylindrical fuse holder is designed for selective system protection and semiconductor component safety.
Technical details:
- Cylindrical fuse holder
- Dimensions: 10x38 mm
- Poles: 1P+N
- In: 32 A
- Un AC: 690 V
- International standards: IEC 60269
- Approved in Europe as fused disconnectors
Customer benefits:
- Designed for protection of semiconductor components
- Usable worldwide due to compliance with international standards
- Safe choice for circuit protection
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| With optical defect indication | No |
| Electrical | |
| Number of poles | 2 |
| Nominal voltage | 690 |

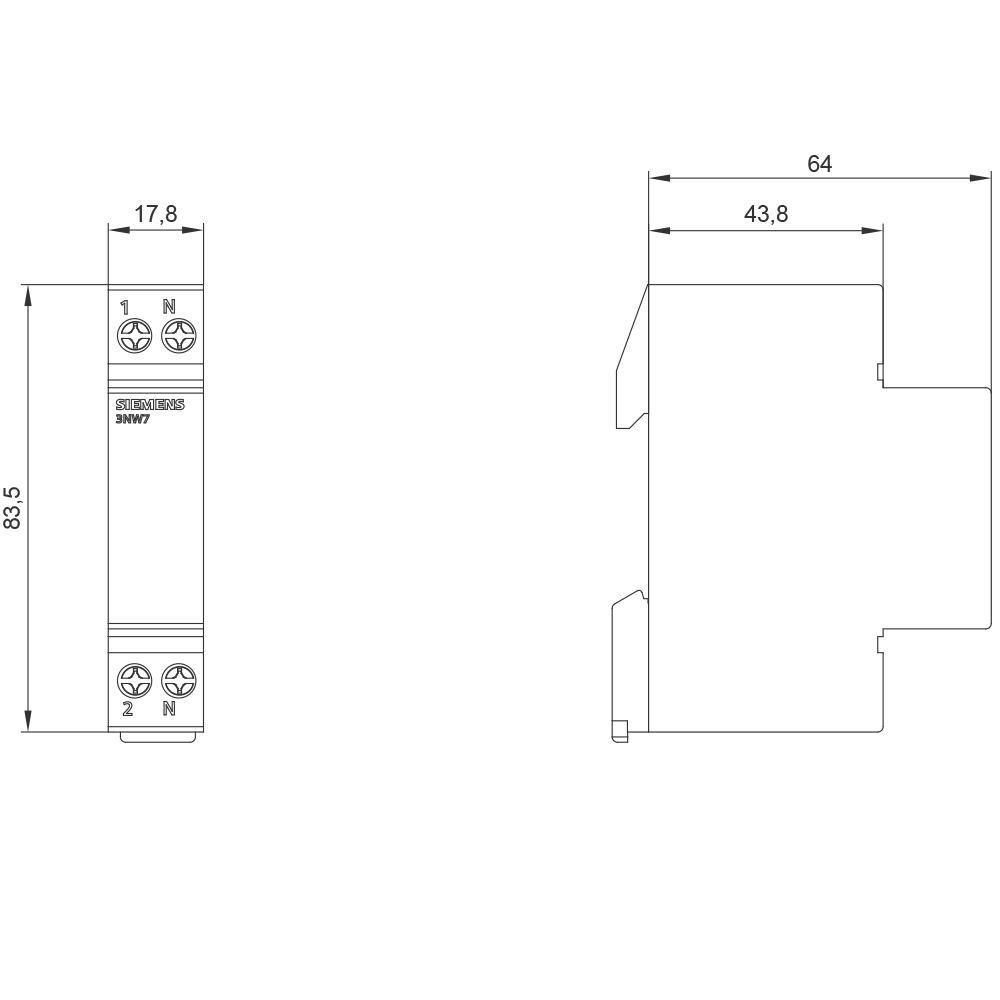

| Measurements | |
| For fuse size | 10x38 mm |
| Width in number of modular spacings | 1 |
| Built-in depth | 64 |
| Options | |
| Lockable | No |
| Concurrently switching neutral conductor | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Package 1 | |
| weight | 0,077 |
| length | 0,093 |
| width | 0,08 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869315607 |
| Package 2 | |
| volume | 0,026 |
| weight | 9,7 |
| length | 0,44 |
| width | 0,325 |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 4001869315607 |
| Dimensions of product | |
| Weight | 0,077 |
