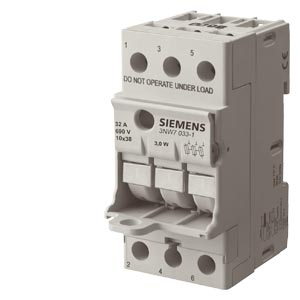

CYLINDRICAL FUSE HOLDER, 10X38 MM, 3-POLE, IN: 32 A, UN AC: 690V, COMPACT VERSION
Cod produs: 3NW7033-1
Descriere
SENTRON, cylindrical fuse holder, 10x38 mm, 3-pole, In: 32 A, Un AC: 690 V, compact version Cylindrical fuse holder 3NW7 for the SENTRON cylindrical fuse system for selective system protection. The 3NW cylindrical fuse inserts and holders are designed to protect semiconductor components. They meet international standards such as IEC 60269, which makes them usable worldwide. They are tested and approved in Europe as fused disconnectors, but are not intended for switching under load. SENTRON circuit protection devices - A safe choice.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| With optical defect indication | No |
| Electrical | |
| Number of poles | 3 |
| Nominal voltage | 690 |

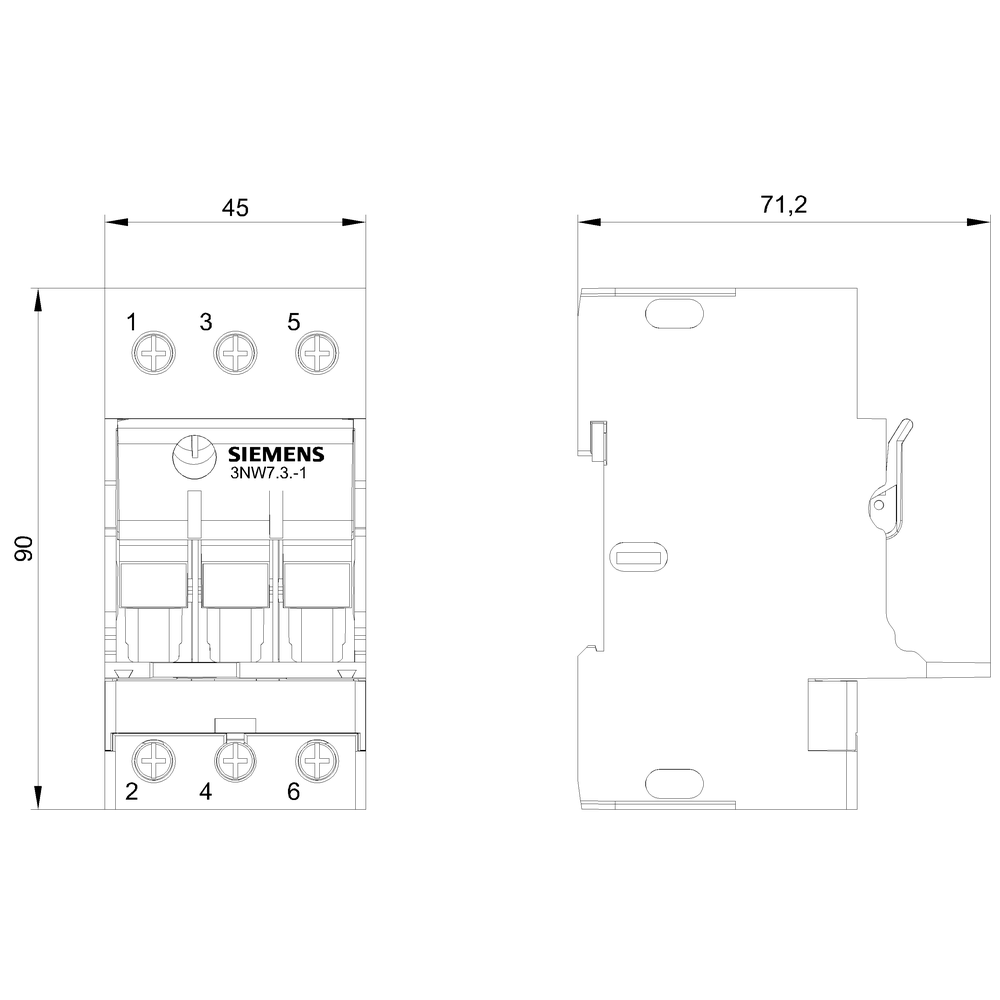

| Measurements | |
| For fuse size | 10x38 mm |
| Width in number of modular spacings | 2.5 |
| Built-in depth | 58 |
| Options | |
| Lockable | Yes |
| Concurrently switching neutral conductor | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Package 1 | |
| weight | 0,198 |
| length | 0,095 |
| width | 0,08 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869422305 |
| Dimensions of product | |
| Weight | 0,198 |
