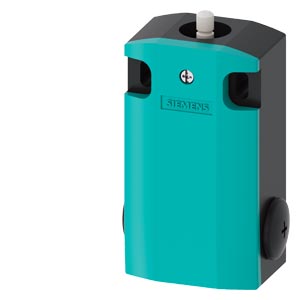

EMPTY ENCLOSURE FOR POSITION SWITCH 3SE5162 METAL ENCLOSURE XL, 56 MM WIDE DEVICE CONNECTION 3X(M20
Cod produs: 3SE5162-0AA00
Alte coduri:
upc: 662643931211
Descriere
Empty enclosure for position switch 3SE5162 Metal enclosure XL, 56 mm wide Device connection 3x(M20 x 1.5) IP66/IP67 without actuator head Safety is a SIRIUS business.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Communication | |
| Type of interface for safety communication | None |
| Type of interface | None |
| Model/type | |
| Switching function | - |
| Type of control element | Other |
| With status indication | No |
| Construction type housing | Cuboid |
| Protection | |
| Degree of protection (NEMA) | 12 |
| Degree of protection (IP) | IP66/IP67 |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Electrical | |
| Rated operation current Ie at AC-15, 24 V | - |
| Rated operation current Ie at AC-15, 125 V | - |
| Rated operation current Ie at DC-13, 24 V | - |
| Rated operation current Ie at DC-13, 125 V | - |
| Rated operation current Ie at AC-15, 230 V | - |
| Rated operation current Ie at DC-13, 230 V | - |
| Setting/control | |
| Alignment of the control element | Roller cam straight |

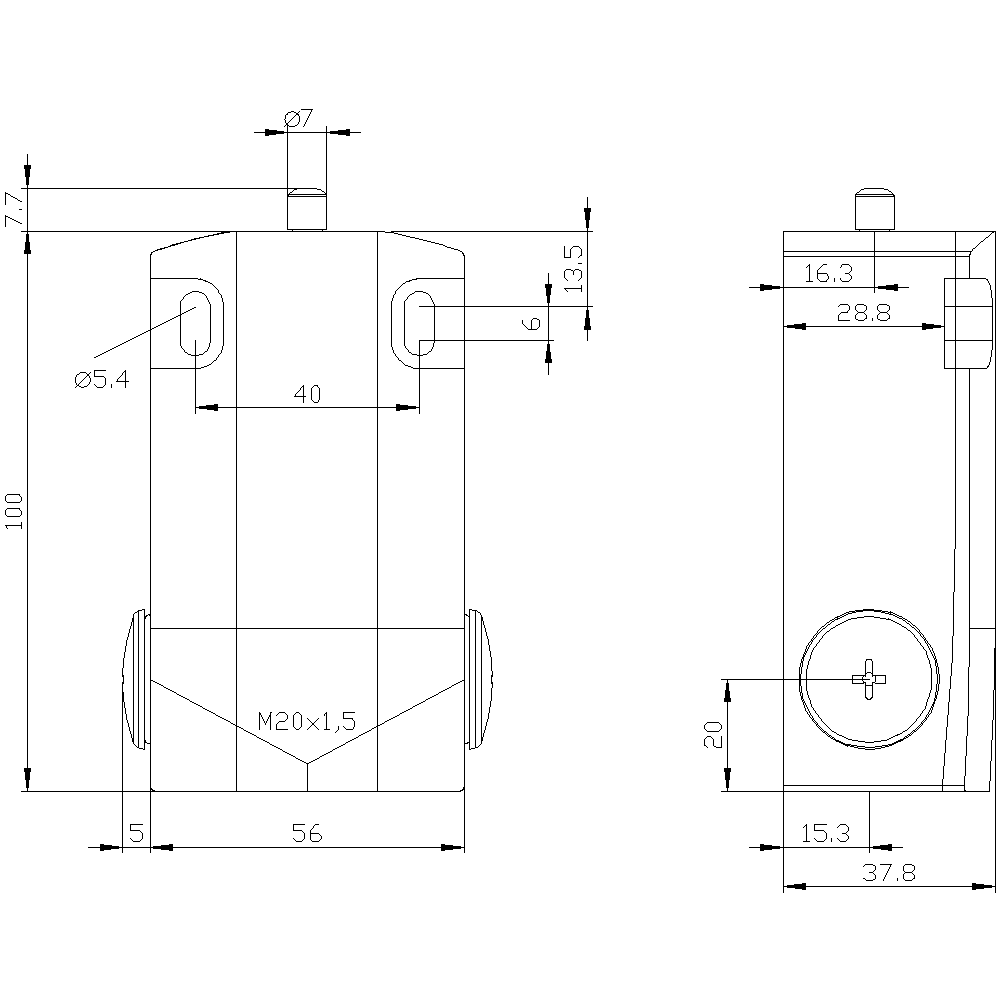

| Measurements | |
| Height of sensor | 37.3 |
| Width sensor | 56 |
| Length of sensor | 100 |
| Diameter sensor | - |
| Connection | |
| Number of contacts as change-over contact | - |
| Number of contacts as normally open contact | - |
| Number of contacts as normally closed contact | - |
| Type of electric connection | - |
| Number of safety auxiliary contacts | - |
| Output electronic | - |
| Options | |
| Forced opening | - |
| Switching function latching | No |
| Material | |
| Coating housing | Lacquered |
| Housing material | Metal |
| Application | |
| Suitable for safety functions | - |
| Operating conditions | |
| Ambient temperature during operating | -25 |
| Package 1 | |
| weight | 0,418 |
| length | 0,1665 |
| width | 0,056 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209862821 |
| Dimensions of product | |
| Weight | 0,418 |
