ENCLOSURE FOR POSITION SWITCH 3SE51, 56 MM WIDE METAL WITH COVER, TURQUOISE DEVICE CONNECTION 3X (M2

Cod produs: 3SE5122-0AA00

▶

Autentificati-va pentru a vedea pretul.

Producator: Siemens

Set: 1 bucati

4011209693005

Alte coduri: upc: 662643931198

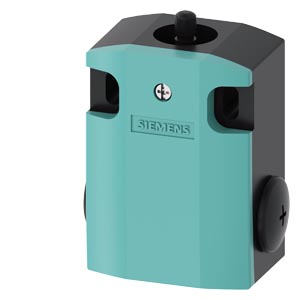

Enclosure for position switch 3SE51, 56 mm wide metal with cover, turquoise Device connection 3x (M20x 1.5) Safety is a SIRIUS business.

Fisa tehnica

Certificat

Altele

Declaratie de conformitate

Alte surse

Communication
Type of interface for safety communication	None
Type of interface	None
Model/type
Switching function	-
Type of control element	Other
With status indication	No
Construction type housing	Cuboid
Protection
Degree of protection (NEMA)	12
Degree of protection (IP)	IP66/IP67
Explosion safety category for dust	None
Explosion safety category for gas	None
Electrical
Rated operation current Ie at AC-15, 24 V	-
Rated operation current Ie at AC-15, 125 V	-
Rated operation current Ie at DC-13, 24 V	-
Rated operation current Ie at DC-13, 125 V	-
Rated operation current Ie at AC-15, 230 V	-
Rated operation current Ie at DC-13, 230 V	-
Setting/control
Alignment of the control element	Roller cam straight

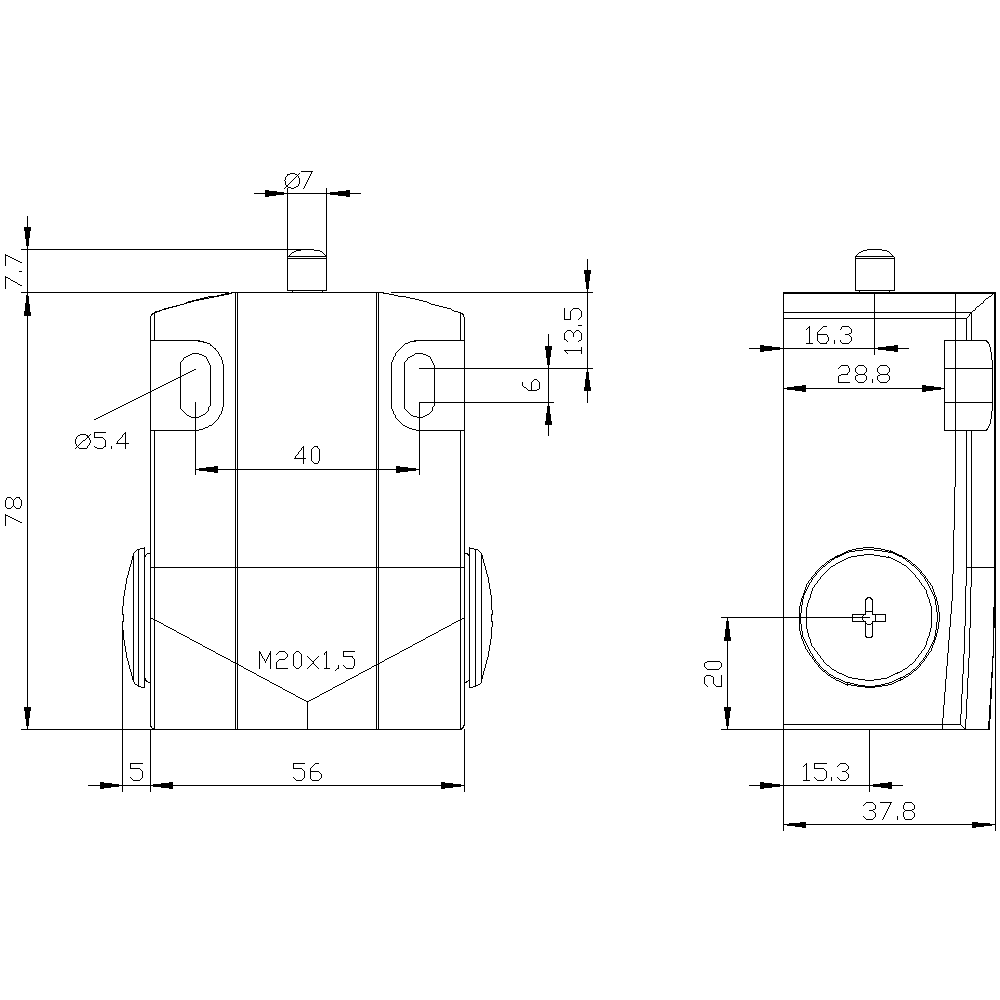

Measurements
Height of sensor	37.8
Width sensor	56
Length of sensor	85.7
Diameter sensor	-
Connection
Number of contacts as change-over contact	-
Number of contacts as normally open contact	-
Number of contacts as normally closed contact	-
Type of electric connection	-
Number of safety auxiliary contacts	-
Output electronic	-
Options
Forced opening	-
Switching function latching	No
Material
Coating housing	Lacquered
Housing material	Metal
Application
Suitable for safety functions	-
Operating conditions
Ambient temperature during operating	-25
Package 1
weight	0,366
length	0,067
width	0,043
qmax	1
qmin	1
um	PA
gtin	4011209693005
Dimensions of product
Weight	0,366
