Descriere

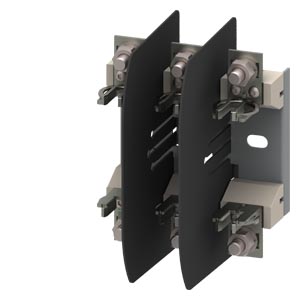

HRC fuse base ceramic Sz. 00 3-pole 160A 690V (1000V) flat terminal LV HRC fuse base SENTRON 3NH8 for LV HRC fuse links. SENTRON circuit protection devices - A safe choice.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| With extra contact | No |
| Bus-mounting type | No |
| Electrical | |
| Number of poles | 3 |
| Rated current | 160 |
| Options | |
| Swivelling mechanism | No |
| Connection | |
| Connection type | Other |
| Mounting/installation | |
| Mounting method | Other |
| Measurements | |
| Construction size | NH00 |
| Material | |
| Halogen free | Yes |
| Package 1 | |
| weight | 0,625 |
| length | 0,15 |
| width | 0,112 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4047624577538 |
| Dimensions of product | |
| Weight | 0,625 |
Accesorii
Altele
SITOR FUSE LINK, WITH BOLT-ON LINKS, NH00, IN: 80 A, GR, UN AC: 690V, UN DC: 440 V, FRONT INDICATOR
Cod: 3NE8020-3MK
Siemens
SITOR FUSE LINK, WITH BOLT-ON LINKS, NH00, IN: 100 A, GR, UN AC: 690V, UN DC: 440 V, FRONT INDICATOR
Cod: 3NE8021-3MK
Siemens
SITOR FUSE LINK, WITH BOLT-ON LINKS, NH00, IN: 80 A, GR, UN AC: 690V, UN DC: 440 V, FRONT INDICATOR
Cod: 3NE8020-3MK
Siemens
SITOR FUSE LINK, WITH BOLT-ON LINKS, NH00, IN: 100 A, GR, UN AC: 690V, UN DC: 440 V, FRONT INDICATOR
Cod: 3NE8021-3MK
Siemens
