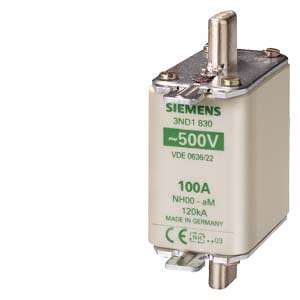

LV HRC FUSE ELEMENT, NH00, IN: 100 A, AM, UN AC: 500 V, UN DC: 440 V, FRONT INDICATOR

Cod produs: 3ND1830

▶

Autentificati-va pentru a vedea pretul.

Producator: Siemens

Set: 1 bucati

4001869020334

Alte coduri: upc: 754554282138

Descriere

LV HRC fuse element, NH00, In: 100 A, aM, Un AC: 500 V, Un DC: 440 V, front indicator LV HRC fuse link SENTRON for switching device protection in motor circuits. 3ND fuses provide effective protection against short-circuit and are especially suitable for use in motor circuits due to their slow switch-off characteristic. The 3ND LV HRC fuse links are available from 6 A to 630 A in the sizes 000, 00, 0, 1, 2 and 3. SENTRON circuit protection devices - The safe choice. Now made smarter.

Documente

Fisa tehnica

Certificat

Link to Certificates

Altele

Link to Sales brochure

Declaratie de conformitate

Alte surse

Specificatii

Electrical
Rated voltage AC	500
Power loss at rated current	5
Voltage type	AC
Rated voltage DC	-
Fuse construction type according to IEC 60269	NH00
Rated current	100
Model/type
Type of fuse status indicator	Top fuse status indicator
Other
Utilization category according to IEC 60269	aM
Performance
Rated switching capacity AC	120
Rated switching capacity DC	-
Options
Insulated metal gripping lugs (IMGL)	No
Package 1
weight	0,201
length	0,095
width	0,083
qmax	3
qmin	3
um	PA
gtin	4001869020334
Dimensions of product
Weight	0,201
