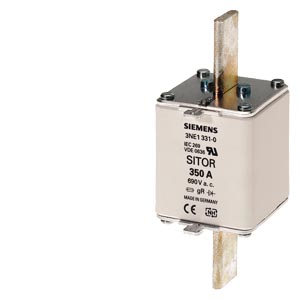

SITOR FUSE LINK, WITH BLADE CONTACTS, NH2, IN: 350 A, GS, UN AC: 690V, UN DC: 250V, FRONT INDICATOR

Cod produs: 3NE1331-0

▶

Autentificati-va pentru a vedea pretul.

Producator: Siemens

Set: 1 bucati

4011209168978

Alte coduri: upc: 662643084238

Descriere

SITOR fuse link

The SITOR fuse link is designed to offer effective protection against overload and short-circuits in electrical installations.

Technical details:

Type: SITOR fuse link
Blade contacts
NH2
In: 350 A
gS
Un AC: 690 V
Un DC: 250 V
Front indicator
Model: SENTRON 3NE1 for SITOR semiconductor fuses

Customer benefits:

Effective protection of personnel, equipment, and systems through safe shutdown in the event of overload or short-circuits.
Extremely fast switch-off characteristics compared to conventional LV HRC fuses.
Very good characteristic curve fidelity provides reliable protection for power semiconductors.
SENTRON circuit protection devices are a safe choice.

Disclaimer: Generated by AI.

Documente

Fisa tehnica

Certificat

Link to Certificates

Altele

Link to Sales brochure

Declaratie de conformitate

Alte surse

Specificatii

Electrical
Rated voltage AC	690
Power loss at rated current	42
Voltage type	AC/DC
Rated voltage DC	250
Fuse construction type according to IEC 60269	NH2
Rated current	350
Model/type
Type of fuse status indicator	Top fuse status indicator
Other
Utilization category according to IEC 60269	Other
Performance
Rated switching capacity AC	100
Rated switching capacity DC	-
Options
Insulated metal gripping lugs (IMGL)	No
Package 1
weight	0,804
length	0,2
width	0,27
qmax	3
qmin	3
um	PA
gtin	4011209168978

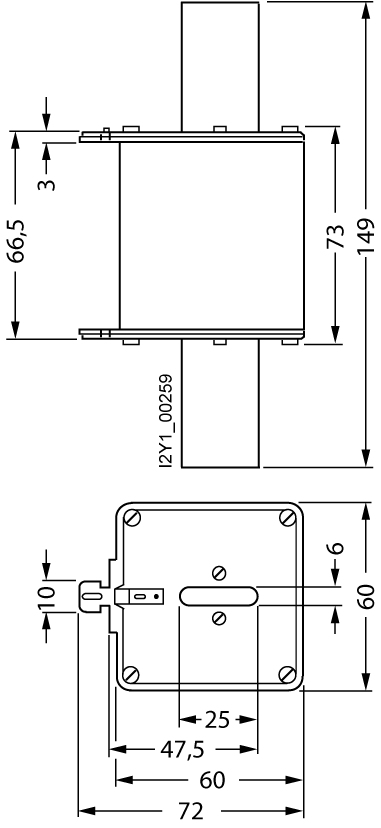

Dimensions of product
Weight	0,804
