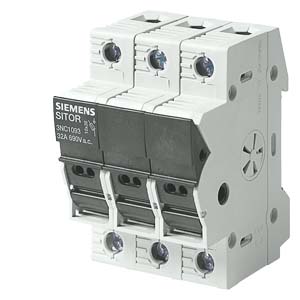

SITOR FUSE SWITCH 10X 38, UP TO 32 A, 690V AC, 3-POLE

Cod produs: 3NC1093

▶

Autentificati-va pentru a vedea pretul.

Producator: Siemens

Set: 1 bucati

4011209570320

Alte coduri: upc: 662643167528

Descriere

SITOR fuse switch 10x 38, Up to 32 A, 690 V AC, 3-pole SITOR fuse switch disconnector SENTRON 3NC1 for SITOR semiconductor fuses. As an important component of the SENTRON protection components for electrical installations, the SITOR fuse system offers effective protection of people, equipment and systems through safe shutdown in the event of overload or short-circuits. Due to their super-fast switch-off characteristics, compared to conventional NH fuses, as well as their very good characteristic curve fidelity, power semiconductors are also reliably protected.SENTRON circuit protection devices - A safe choice.

Documente

Fisa tehnica

Certificat

Link to Certificates

Altele

Link to Sales brochure

Alte surse

Specificatii

Model/type
Version as emergency stop installation	No
With error protection	No
Version as main switch	No
Version as safety switch	Yes
Motor drive integrated	No
Type of control element	Other
Connection
Type of electrical connection of main circuit	Screw connection
Equipped with connectors	No
Cable entry	Other
Electrical
Rated short-time withstand current lcw	-
Number of poles	3
Max. rated operation voltage Ue AC	690
Rated operation power at AC-23, 400 V	-
Rated permanent current Iu	32
Conditioned rated short-circuit current Iq	50
Application
Suitable for fuses	10x38 mm
Mounting/installation
Suitable for front mounting	No
Suitable for floor mounting	No
Suitable for busbar mounting	No
Options
Motor drive optional	No
Setting/control
Position control element	Front side
Protection
Degree of protection (IP), front side	IP20
Package 1
weight	0,155
length	0,08
width	0,065
qmax	4
qmin	4
um	PA
gtin	4011209570320

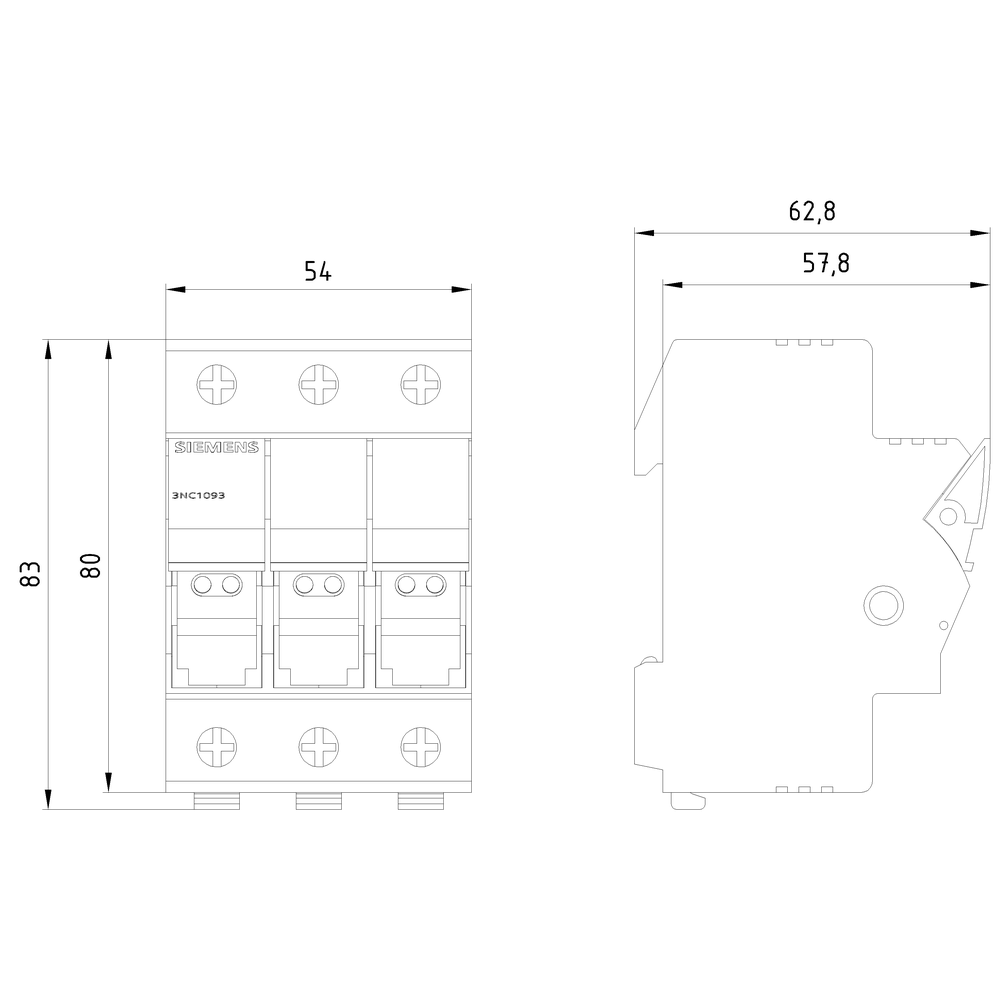

Dimensions of product
Weight	0,155

Afiseaza mai multe specificatii
