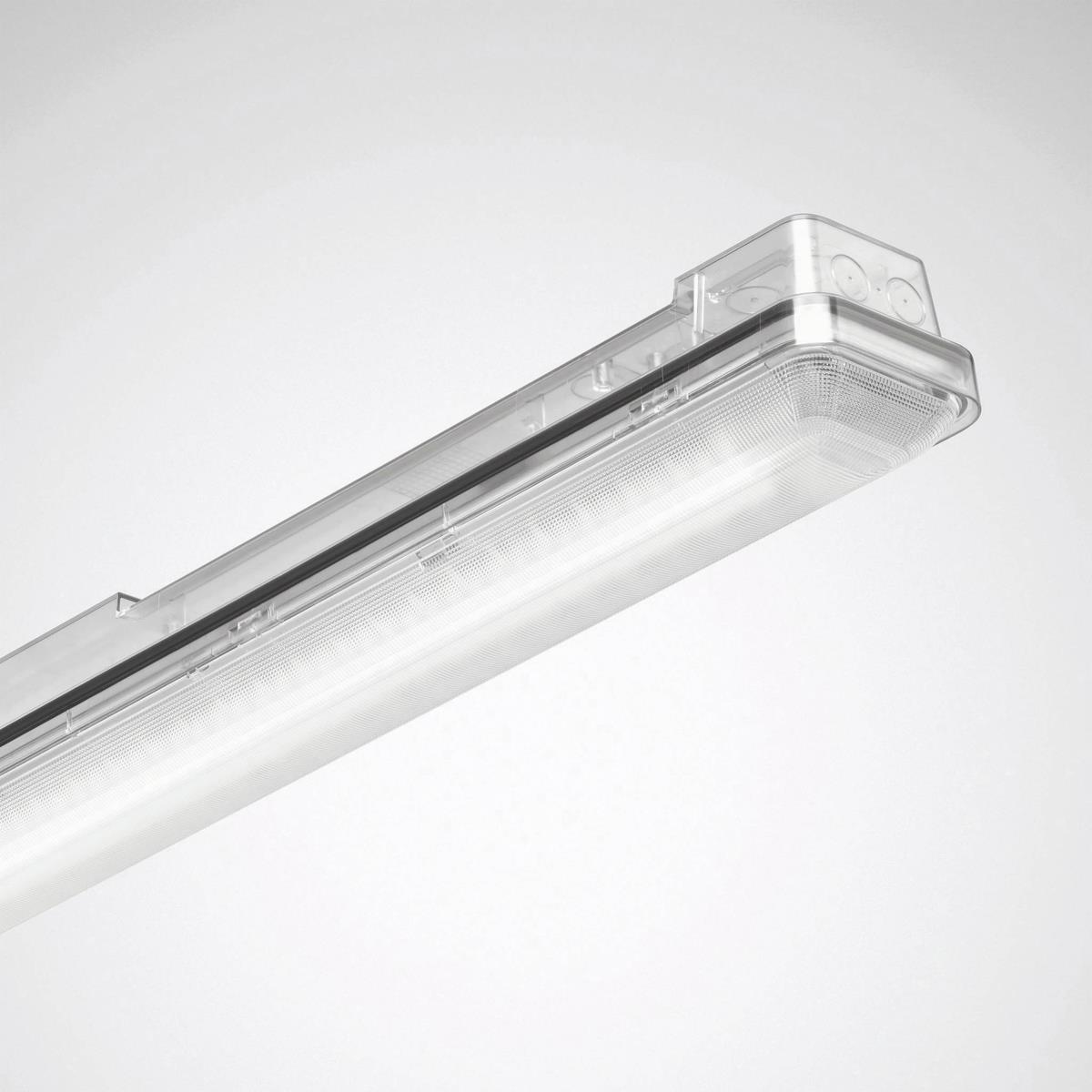

AragF 12 PXW 20-65/16ML-840 ET

LED weather-proof luminaire with IP66 protection for use in applications with high demands on variability, efficiency, quality of light and technology. The luminaire is part of an assortment with constructionally identical, mounting-compatible variants. These versions are available with alternative optical systems, light engines with settable luminous flux levels and with a connection option to light management systems and emergency lighting systems. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. With limited surface temperature, suitable for use in fire hazardous areas according to DIN EN 60598-2-24. With clipless catch technology for protection rating-compliant and simple assembly of diffuser cover and luminaire body after electrical connection. Suspended mounting possible via optional accessories. Ceiling mounting using included fixing clips. Suspended mounting possible via optional accessories. With a prismatic, photometrically effective, translucent PMMA diffuser, direct distribution. With symmetric extremely wide light distribution. Direct distribution with decorative indirect component. Division of luminaire luminous flux into indirect/direct components 85% / 15%. Luminaire luminous flux adjustable in 16 steps (Multilumen). Luminaire luminous flux 2000 lm - 6500 lm, connected load 14 W - 48 W, maximum luminous efficiency of luminaire 154 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80 (tq 25 °C) = 70,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). The basic setting in factory state corresponds to the lowest-settable luminaire luminous flux. Flicker: Pst LM ≤ 1.0 at full load. Stroboscopic effect: SVM ≤ 0.4 at full load. Colourless luminaire body, made of translucent, breakage-resistant polycarbonate. Surface coated light grey (similar to RAL 7035). Dimensions (L x W): 1257 mm x 102 mm, luminaire height 91 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP66, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Permissible ambient temperature (ta): -30 °C to 35 °C. Weight: 2,2 kg. With 3-pole terminal to 2.5 mm2. With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
