Descriere

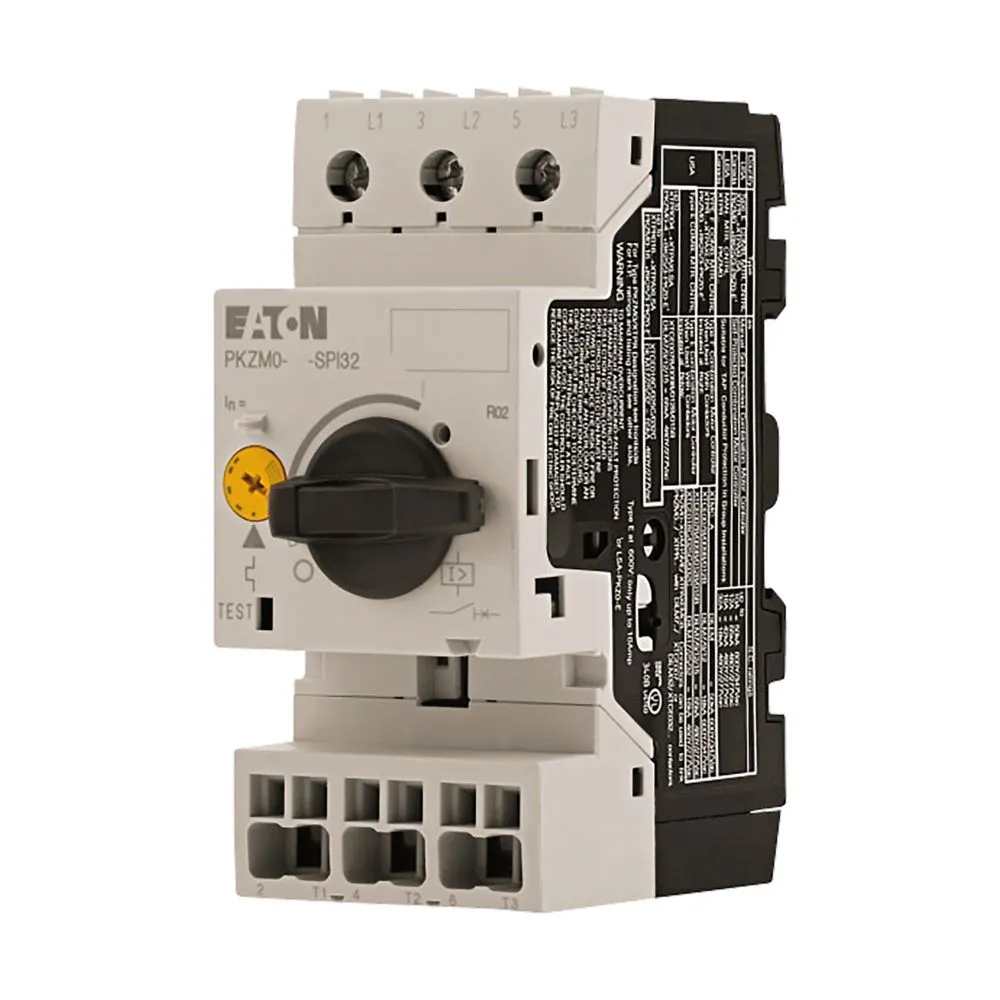

Motor-protective circuit-breaker, IEC/EN 60947, VDE 0660, Overload releases 2.5 - 4 A: max. 62 A, Switch off technique Thermomagnetic, With thermal protection Yes, Phase failure sensitive Yes, Rated permanent current Iu 4 A, Rated operation power at AC-3, 230 V 0.75 kW, Rated operation power at AC-3, 400 V 1.5 kW, Type of control element Turn button, Number of poles 3: Rated short-circuit breaking capacity lcu at 400 V, AC 150 kA, Device IP20, Terminations IP00, Storage - 40 - 80 °C, Open -25 - +55 °C, Direction of incoming supply as required
Specificatii
| Electrical | |
| Overload release current setting | 2.5 |
| Adjustment range undelayed short-circuit release | 62 |
| Rated operating voltage | 690 |
| Rated permanent current Iu | 4 |
| Rated operation power at AC-3, 230 V | 0.75 |
| Rated operation power at AC-3, 400 V | 1.5 |
| Power loss | 5.33 |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 150 |
| Model/type | |
| With thermal overload protection | No |
| Type of control element | Turn button |
| With integrated auxiliary switch | No |
| Options | |
| Phase failure sensitive | Yes |
| Other | |
| Switch off technique | Thermomagnetic |
| Device construction | Built-in device fixed built-in technique |
| Connection | |
| Type of electrical connection of main circuit | Screw-/spring clamp connection |
| Protection | |
| Degree of protection (IP) | IP20 |
| Measurements | |
| Height | 102 |
| Width | 45 |
| Depth | 75 |
| Package 1 | |
| volume | 0,00045247 |
| weight | 0,332 |
| length | 0,081 |
| width | 0,049 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081972807 |
| Dimensions of product | |
| Volume | 0,00034425 |
| Weight | 0,311 |
| Length | 0,075 |
| Width | 0,045 |
| Depth | 0,102 |
